Remove/install back shell from front seat backrest - AR91.10-P-1915GZ

MODEL 164

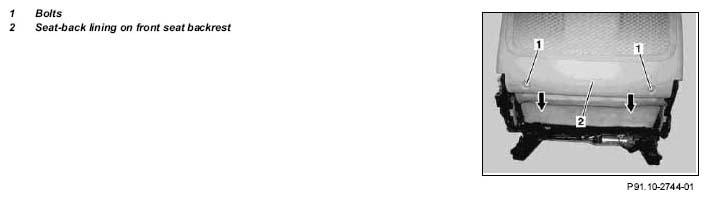

Fig 1: Identifying Back Shell From Front Seat Backrest Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Move front seat forward
2	Move front seat backrest forward
3	Remove bolts (1)
4	Slide seat-back lining on front seat backrest (2) downwards out of guides and remove	Remove seat-back lining on front seat backrest (2) carefully to prevent damage to guides.
5	Install in the reverse order
