Remove/install head restraint on front seat - AR91.16-P-0040GZ
MODEL 164 Electrically adjustable head restraint

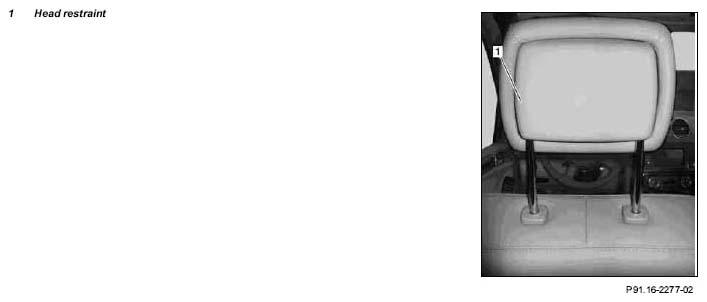

Fig 1: Identifying Head Restraint On Front Seat Components - Electrically Adjustable Head Restraint (1 Of 2)

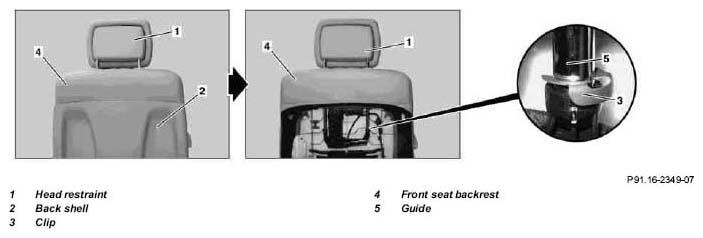

Fig 2: Identifying Head Restraint On Front Seat Components - Electrically Adjustable Head Restraint (2 Of 2)
| Remove/install | |||
|---|---|---|---|
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove back shell (2) on front seat backrest (4) | AR91.10-P-1915GZ | |
| 2 | Unclip clip (3) from guide (5) | ||
| 3 | Disconnect electrical connector | ||
| 4 | Tilt front seat backrest to the rear (4) | ||
| 5 | Pull head restraint (1) out upward | ||
| 6 | Install in the reverse order |
