Remove/install front engine mount and/or engine support - AR22.10-P-1260CWX

ENGINE 272 in MODEL 204.08/95/98

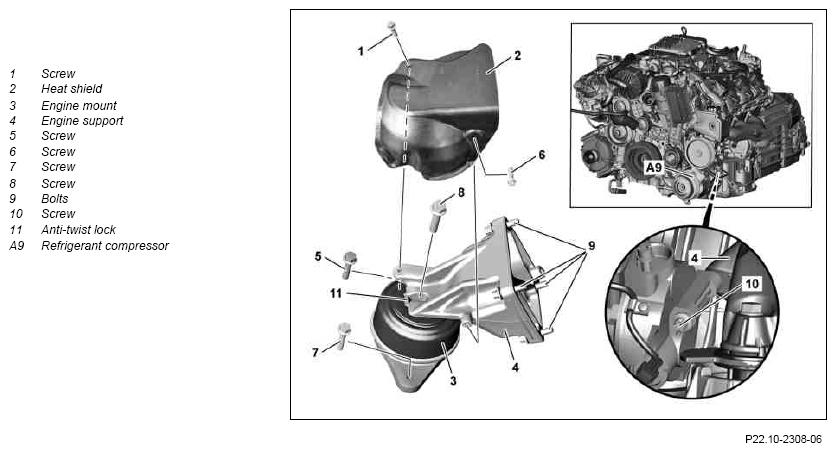

Fig 1: Identifying Front Engine Mount Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Remove air filter housing		AR09.10-P-1150CV
2	Unfasten electrical wiring harness for alternator, starter on cylinder head at front and middle
3	Remove screw/bolt (1) on the left and on the right heat shield (2) from the engine supports (4)
4	Remove screw/bolt (5) on the left and on the right engine mount (3) from the front axle carrier	Bolt, front engine mount to front axle carrier	*BA22.10-P-1002-03E
		Engine mount wrench set	Fig 2
		Torque tool set	Fig 3
5	Remove left and right catalytic converter		AR49.10-P-7100CW
6	Remove the shield above the front axle transmission
7	Remove screw/bolt (6) on the left and on the right heat shield (2) from the engine supports (4)
8	Remove screw/bolt (7) on the left and on the right engine mount (3) from the front axle carrier	Bolt, front engine mount to front axle carrier	*BA22.10-P-1002-03E
		Engine mount wrench set	Fig 2
		Torque tool set	Fig 3
9	Remove left and right front axle shaft	ENGINE 272 in MODEL 204.08/98
			AR33.30-P-0620CWX
10	Remove screw/bolt (8) on the left and right engine support (4) from the engine mounts (3)	Bolt, front engine mount to engine support	*BA22.10-P-1001-03E
		Engine mount wrench set	Fig 2
		Torque tool set	Fig 3
11	Remove alternator screw/bolts		AR15.40-P-5032CV
		Attach alternator de-energized on the vehicle.
12	Mount engine hoist		AR33.10-P-0105CW
13	Raise engine slightly with engine hoist
14	Take out engine mount (3)	Always replace engine mounts in pairs. Take out the left engine mount (3) towards the bottom rear and the right engine mount (3) towards the top front. The anti-twist locks (11) of the engine mounts (3) must fit in the notches of the engine supports (4). Pay attention to environmental protection regulations for disposal of engine mounts (3). Dispose engine mounts (3) into mixed scrap.
	Left engine support
15	Remove screw/bolt (10) on the refrigerant compressor (A9) from engine support (4)	Bolt, refrigerant compressor to timing case/crankcase/engine support	*BA83.55-P-1001-01M
16	Remove screw/bolts (9) from the cylinder crankcase and take out the engine support (4)	Take out the engine support (4) towards bottom rear.
		Bolt, engine support to crankcase	*BA22.10-P-1001-02A
	Right engine support
17	Remove exhaust manifold		AR14.10-P-3915CWX
18	Remove screw/bolt from engine support (4) to front axle transmission	Collar bolt, front axle gear to engine support	*BA33.30-P-1007-03G
19	Remove screw/bolts (9) from the cylinder crankcase and take out the engine support (4)	Take out the engine support (4) towards the top front.
		Bolt, engine support to crankcase	*BA22.10-P-1001-02A
20	Install in the reverse order

ENGINE SUPPORT (ENGINE SIDE)

Number	Designation			ENGINE 272
BA22.10-P-1001-02A	Bolt, engine support to crankcase	Stage 1	Nm	20
		Stage 2	∠°	90

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation				MODEL 204
BA22.10-P-1001-03E	Bolt, front engine mount to engine support	M10		Nm	50
		M12	Stage 1	Nm	-
			Stage 2	∠°	-

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation			MODEL 204
BA22.10-P-1002-03E	Bolt, front engine mount to front axle carrier	M8	Nm	28

FRONT AXLE GEAR

Number	Designation			MODEL 204
BA33.30-P-1007-03G	Collar bolt, front axle gear to engine support	Stage 1	Nm	5
		Stage 2	Nm	50
		Stage 3	∠°	95

REFRIGERANT COMPRESSOR

Number	Designation		ENGINE 272
BA83.55-P-1001-01M	Bolt, refrigerant compressor to timing case/crankcase/engine support	Nm	20

Fig 2: Identifying Engine Mount Wrench Set (001 589 01 16 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Torque Tool Set (003 589 05 09 00)

Courtesy of MERCEDES-BENZ USA
