Remove/install alternator - AR15.40-P-5032CV
ENGINE 272 in MODEL 204
ENGINE 272, 273 in MODEL 207
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Detach ground line from battery | Model 204 | AR54.10-P-0003CW |
| Model 207 | AR54.10-P-0003EW | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| 2 | Remove fan unit | Vehicles with engine 273 | AR20.40-P-5050CW |
| 3 | Remove poly-V belt | AR13.20-P-0001CV | |
| 4 | Remove lower engine compartment panelings | Model 204.0/2 | |
| Model 204.9 | AR61.20-P-1105CY | ||
| Model 207 | AR61.20-P-1105EW | ||
| 5 | Remove bolt for power steering pressure line from holder on alternator (G2) | Model 204.0/2, model 207 | |
| *BA46.30-P-1009-01R | |||

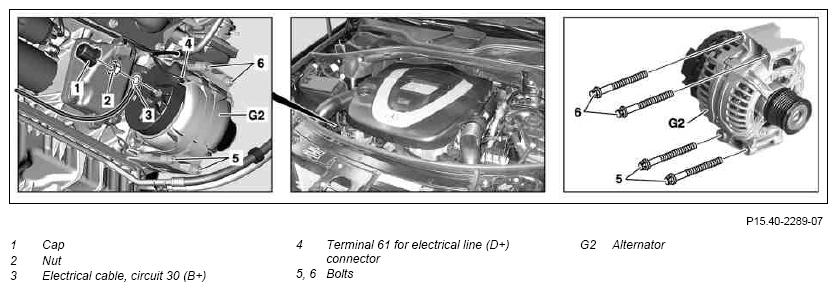

| 6 | Detach cap (1), Unscrew nut (2) and remove electrical line (3) from alternator (G2) | *BA15.40-P-1002-01F | |
| 7 | Unplug plug (4) from alternator (G2) | ||
| 8 | Remove bolts (5, 6) from alternator (G2) | *BA15.40-P-1001-01F | |
| 9 | Take alternator (G2) down and out | ||
| 10 | Install in the reverse order |
ALTERNATOR
| Number | Designation | Engine 272 | Engine 273 | |
|---|---|---|---|---|
| BA15.40-P-1001-01F | Bolt, alternator to timing case | Nm | 20 | 20 |
| BA15.40-P-1002-01F | Nut, circuit B+ to alternator | Nm | 15 | 15 |
POWER STEERING PUMP
| Number | Designation | Model 204 without engine 651 | Model 207 | |
|---|---|---|---|---|
| BA46.30-P-1009-01R | Nut, high-pressure line to alternator bracket | Nm | 8 | 8 |
