Remove/Install Paneling On D-Pillar - AR68.30-P-4495CY
Model 204.9
| Remove/install | |||
| 1 | Remove trim from C-pillar | AR68.30-P-4490CY | |
| 2 | Unclip cover (1) from closing hook and remove | ||
| 3 | Unscrew bolt below cover (1) on side cargo area interior trim (3) | ||
| 4 | Unhook luggage compartment cover, release on left and right and remove | Only on vehicles with code (723) Luggage compartment cover | |
| 5 | Unlock stowage compartment (4) and remove from vehicle | ||
| 6 | Unscrew bolt (2) from side cargo area interior trim (3) | ||
| 7 | Unscrew bolt (5) from side cargo area interior trim (3) | ||
| 8 | Unscrew bolt (7) and remove luggage compartment eyelet (8) | Only when removing left D-pillar paneling (6). | |

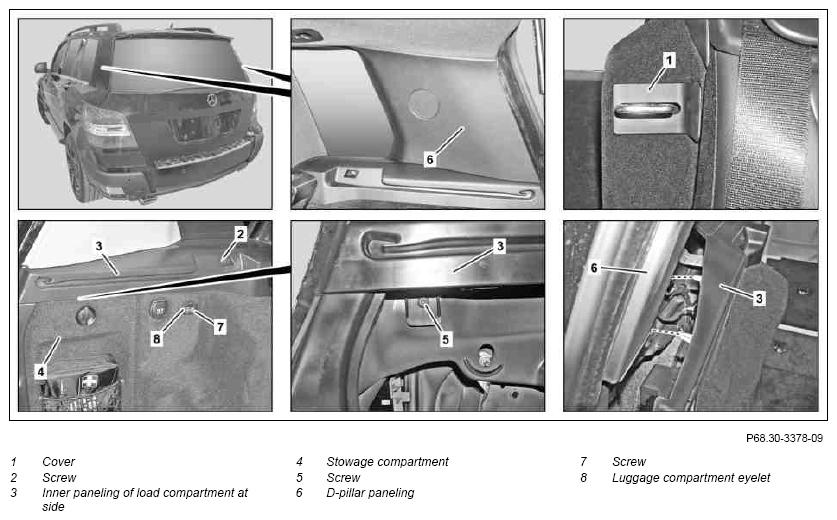

| 9 | Unclip side cargo area interior trim (3) from D-pillar paneling (6) | Figure | |
| 10 | Unclip D-pillar paneling (6) and remove until electrical connector (9) is accessible | Only with code (810) Sound system | |

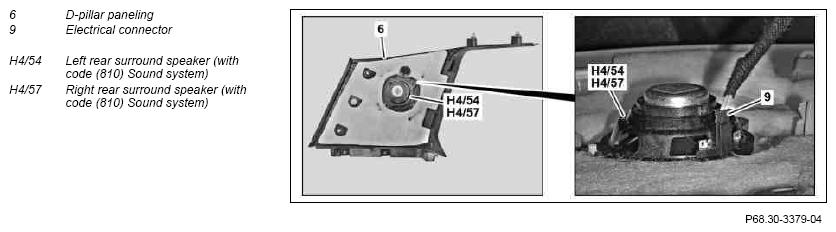

| Figure | |||
| 11 | Separate electrical connectors (9) | Only with code (810) Sound system | |
| 12 | Remove D-pillar paneling (6) | ||
| 13 | Install in the reverse order |
