Remove compressor, install - AR32.22-P-2001GZ: Notes

MODEL 164 with CODE (489) AIRmatic (air suspension with level adjustment and adaptive damping system ADS)

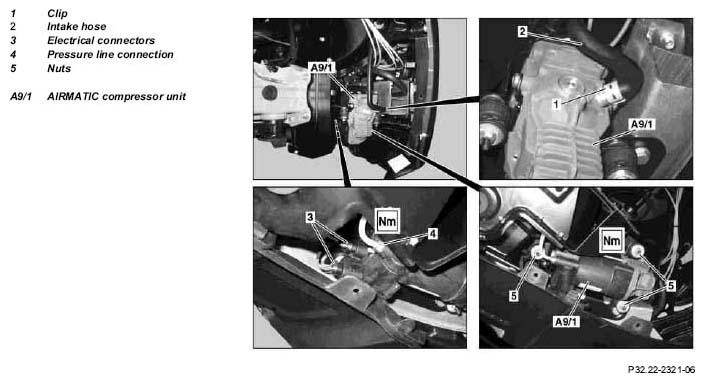

Fig 1: Identifying Compressor Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on AIRmatic		AH32.22-P-1000-02GZ
1	Switch off ignition
2	Raise vehicle using vehicle lift until the wheels are clear of the ground		AR00.60-P-1000GZ
3	Remove front section of fender liner in right front fender		AR88.10-P-1310GZ
4	Release clip (1) and detach intake hose (2)
5	Disconnect electrical connectors (3)
6	Detach pressure line (4) from AIRmatic compressor unit (A9/1)	The complete wheels must not be on the ground. The air springs can otherwise be damaged and fail later. Seal connections with blind plugs. Installation:  Check pressure line (4) and pressure line connections for damage, if necessary: ↓
		Repair AIRmatic pressure line connection	AR32.22-P-2001-02GZ
			*BA32.22-P-1003-03B
		Socket	Fig 3
		Knife	Fig 2
		Leak detection spray	*BR00.45-Z-1002-03A
		Leak detection spray for USA	*BR00.45-Z-1004-03A
7	Unscrew nuts (5) and remove AIRmatic compressor unit (A9/1)		*BA32.22-P-1002-03B
8	Check rubber mounts of AIRmatic compressor unit (A9/1)	Check condition and correct seating, replace if necessary: ↓ Replace rubber mounts for compressor.	AR32.22-P-2011TX
9	Replace AIRmatic relay	When replacing AIRmatic compressor unit (A9/1)
	Relay assignment of fuse and relay box in right engine compartment	Up to model year (MY) 2008/ modification year 07	GF54.15-P-1257-02GZ
	Relay assignment of fuse and relay box in right engine compartment	Model 164.1 as of MY 2009 /modification year 08 facelift, Model 164.8 as of MY 2009 /modification year 08	GF54.15-P-1257-02GM
10	Install in the reverse order
11	Fill AIRmatic using STAR DIAGNOSIS	Fill AIRmatic correctly; the complete wheels must not be touching the ground. The air springs can otherwise be damaged and fail later.	AD00.00-P-2000-04A
12	Check AIRmatic for leaks.		AR32.22-P-8100GZ

Fig 2: Identifying Hose Cutter (000 589 12 28 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Wrench Socket (211 589 00 09 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
