Remove/install fender liner front section in front fender - AR88.10-P-1310GZ

MODEL 164

Shown on model 164.1

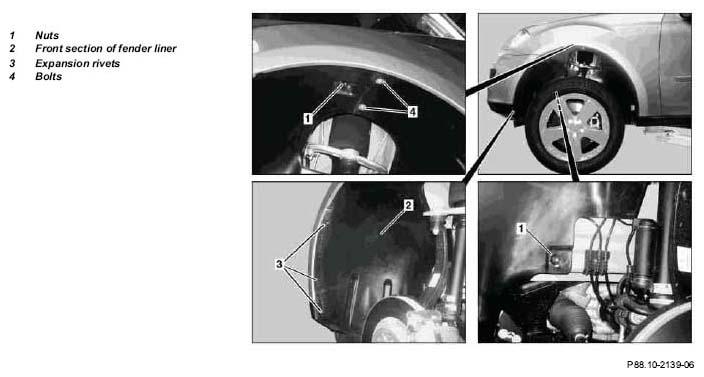

Fig 1: Identifying Fender Liner Front Section In Front Fender Remove/Install Components - Shown On Model 164.1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1		Lift/jack up vehicle	AR00.60-P-1000GZ
2	Unscrew bolts of fender liner front section (2) on bumper.
3	Unscrew nuts (1).
4	Remove expansion rivets (3)
5	Remove screws (4)
6	Lift rear section of fender liner in fender.	Lift rear section of fender liner at top overlap with mounting wedge until front section of fender liner (2) can be removed from fender.
		Mounting wedge	Fig 2
7	Remove front section of fender liner (2) from fender
8	Install in the reverse order
