Remove/install front door window lifter - AR72.10-P-1800SC

MODEL 216.3

Shown on left power window

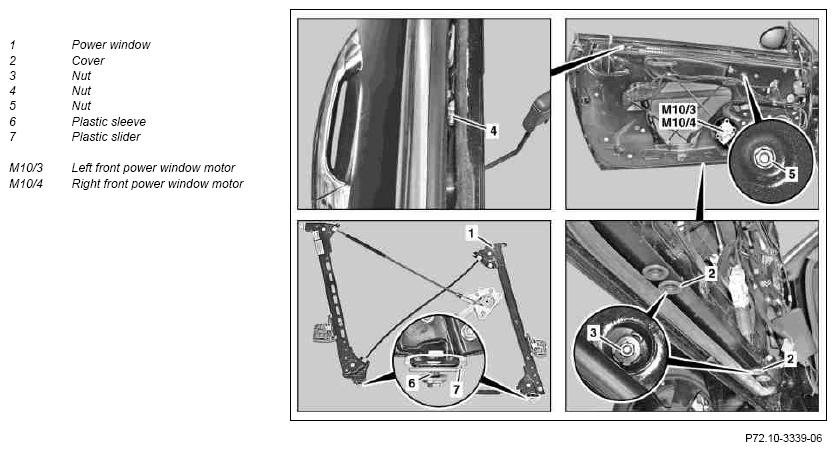

Fig 1: Identifying Front Door Window Lifter Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove crank window from left and right front door.		AR72.10-P-1900SC
2	Loosen left front power window motor (M10/3) or right front power window motor (M10/4) from power window (1) and allow electrical lines to hang.		AR72.29-P-1860SC
3	Remove covers (2) at bottom on front door
4	Loosen nut (4)	Installation  : Press power window (1) on upper rear attachment point against stop toward inside and tighten nut (4).	*BA72.10-P-1019-01Q
5	Unscrew nut (5)		*BA72.10-P-1019-01Q
6	Unscrew nuts (3), remove plastic sleeves (6).	Installation  : Insert plastic sleeves (6) into guide groove on lower power window mounts with flat side toward outer door (only if power window (1) is not replaced). Center power window (1) in lower power window mounts.	*BA72.10-P-1018-01Q
7	Remove power window (1) from front door.	Installation  : Ensure that plastic sliders (7) are seated correctly in lower power window mounts (front plastic slider (7) with short groove, rear plastic slider (7) with long groove).
8	Install in the reverse order

FRONT DOOR

Number	Designation		Model 216
BA72.10-P-1018-01Q	Mount for power window on door at top	Nm	10
BA72.10-P-1019-01Q	Mount for power window on door at bottom	Nm	12
