Remove/installing front door power window motor - AR72.29-P-1860SC

MODEL 216.3

Shown with code (810) Sound system

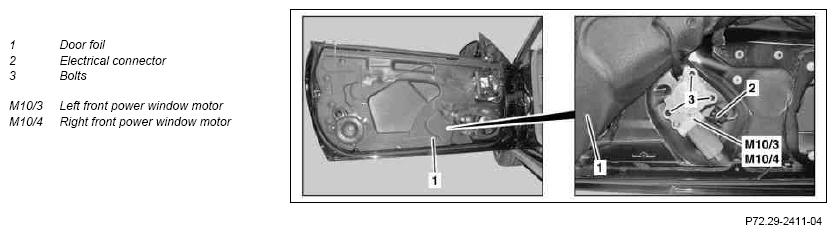

Fig 1: Identifying Left / Right Front Door Power Window Motor Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove door lining		AR72.10-P-1000SC
2.1	Remove left door woofer and midrange speaker group connector or right door woofer and midrange speaker group connector.	On vehicles with code (810) Sound system	AR82.62-P-7845SC
3	Loosen door foil (1) from inner door panel until left front power window motor (M10/3) or right front power window motor (M10/4) is accessible.	Do not cut door foil (1) but butyl cord to which door foil (1) is glued. Installation:  Install new butyl cord parallel to damaged butyl cord and firmly roll down door foil (1) in area of new butyl cord.
			*168589056300
		Sealing cord	*BR00.45-Z-1086-01A
4	Disconnect electrical connector (2)
5	Unscrew bolts (3) and remove left front power window motor (M10/3) or right front power window motor (M10/4) from inner door panel.		*BA72.10-P-1016-01Q
6	Install in the reverse order
7	Normalize left front power window motor (M10/3) or right front power window motor (M10/4)

FRONT DOOR

Number	Designation		Model 216
BA72.10-P-1016-01Q	Bolt, power window motor on inner door panel	Nm	5

Fig 2: Identifying Roller (168 589 05 63 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1086-01A	Soft top frame sealing profile with metal core 35 m, SEALANT/butyl Bostik 1127	A 005 989 12 71 10
