Adjust camber and caster at the front axle - AR40.20-P-0263CW

MODEL 172, 204, 207

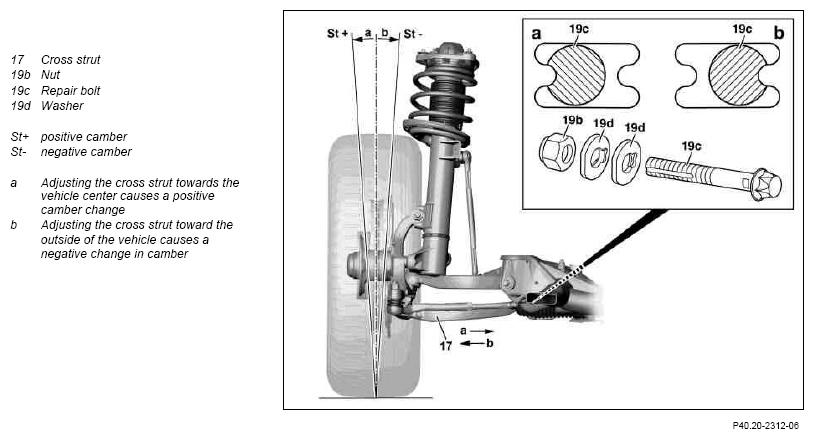

Camber, shown on model 204.0 without 4MATIC

Fig 1: Identifying Camber Adjusting Dimensions (Caster, Model 204.0 Without 4MATIC)
G07532949Courtesy of MERCEDES-BENZ USA

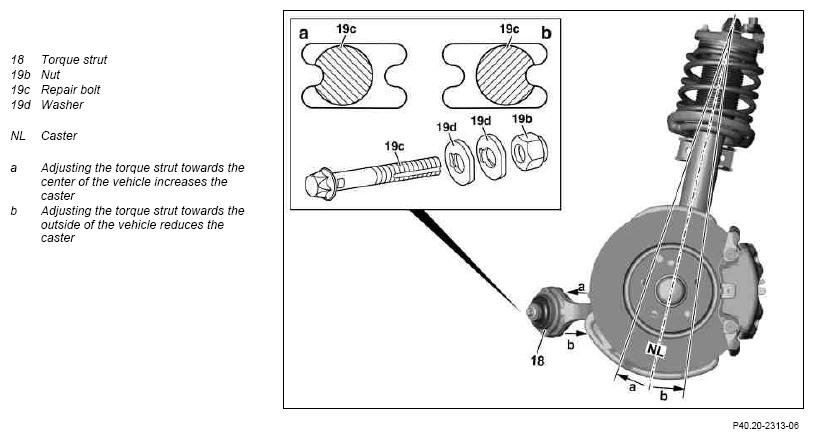

Caster, shown on model 204.0 without 4MATIC

Fig 2: Identifying Caster Adjusting Dimensions (Caster, Model 204.0 Without 4MATIC)
G07532950Courtesy of MERCEDES-BENZ USA
REMOVING Remove
1.1 Remove both lower engine compartment paneling Model 204.9 AR61.20-P-1105CY
1.2 Remove engine compartment paneling Model 204.0/2 with gasoline engine
    Model 207 with gasoline engine AR61.20-P-1105EW
    Model 172 with gasoline engine AR61.20-P-1105W
1.3 Remove bottom sections of soundproofing Model 204.0/2 with diesel engine
    Model 207 with diesel engine AR94.30-P-5300EW
    Model 172 with diesel engine AR94.30-P-5300W
2 Raise the vehicle at the front axle
  Adjust
3 Install repair bolt (19c) IMPORTANT Screw on the nut (19b) of the repair bolt (19c) until it abuts, however do not tighten yet, so that the rubber mount of the strut rod (18) or cross strut (17) can twist when rocking vehicle to settle the suspension.
Camber at vehicle level:		 AR40.20-P-0322-01CW
    Model 172 *BE40.20-P-1001-13AA
    Model 204 *BE40.20-P-1001-13O
    Model 207 *BE40.20-P-1001-13Q
    Permissible difference in front axle camber between right and left side of vehicle:
    Model 172 *BE40.20-P-1002-13AA
    Model 204 *BE40.20-P-1002-13O
    Model 207 *BE40.20-P-1002-13Q
    Check caster, assign tabular value:
    4 Model 172 AR40.20-P-0322-03W
    Model 204.0/2 (except model 204.077/277/08/28/09/29) AR40.20-P-0322-03CW
    Model 204.077/277 AR40.20-P-0322-03CX
    models 204.08/28/09/29 AR40.20-P-0322-03CY
    Model 204.9 AR40.20-P-0322-03CZ
    Model 207
Permissible difference in caster between the right and left side of the vehicle:		 AR40.20-P-0322-03EC
    Model 172 *BE40.20-P-1001-20A
    Model 204, 207 *BE40.20-P-1001-20E
4 Recheck vehicle level at front axle after adjusting the camber and caster. IMPORTANT The vehicle level must correspond to the quoted specified values. AR40.20-P-0301CW
5 Tighten the nut (19b) of the repair bolt (19c) NOTES The repair bolt (19c) must not be turned after fixing. When tightening the nut (19b), counterhold the repair bolt (19c). The lock tabs in the front axle carrier can otherwise be damaged.
    TORQUE SPECIFICATION Model 204, 207 *BA33.20-P-1002-01N
    TORQUE SPECIFICATION Model 172 *BA33.20-P-1002-01Q
    TORQUE SPECIFICATION Model 204, 207 *BA33.20-P-1010-01N
    TORQUE SPECIFICATION Model 172 *BA33.20-P-1003-01Q
    TORQUE SPECIFICATION Model 204, 207 *BA33.20-P-1004-01N
    TORQUE SPECIFICATION Model 172 *BA33.20-P-1005-01Q
    TORQUE SPECIFICATION Model 204, 207 *BA33.20-P-1005-01N
    TORQUE SPECIFICATION Model 172 *BA33.20-P-1006-01Q
INSTALLING Install
6.1 Install both lower engine compartment paneling Model 204.9 AR61.20-P-1105CY
6.2 Install lower engine compartment paneling Model 204.0/2 with gasoline engine
    Model 207 with gasoline engine AR61.20-P-1105EW
    Model 172 with gasoline engine AR61.20-P-1105W
6.3 Install bottom section of soundproofing Model 204.0/2 with diesel engine
    Model 207 with diesel engine AR94.30-P-5300EW
    Model 172 with diesel engine AR94.30-P-5300W
INSPECTION AND ADJUSTING VALUES FOR FRONT-AXLE CAMBER

Number  Designation      Model 172
BE40.20-P-1001-13AA Camber at vehicle level -0.3° ∠° -1°30' (±24')
    +0.3° ∠° -1°30' (±24')
    +0.7° ∠° -1°29' (±24')
    +1.2° ∠° -1°29' (±24')
    +1.7° ∠° -1°28' (±24')
    +2.3° ∠° -1°27' (±24')
    +2.8° ∠° -1°26' (±24')
    +3.8° ∠° -1°24' (±24')
    +4.3° ∠° -1°23' (±24')
    +4.8° ∠° -1°21' (±24')
    +5.3° ∠° -1°20' (±24')
BE40.20-P-1002-13AA Permissible difference in front axle camber between right and left sides of the vehicle   ∠° 24'
CHECK VALUES FOR FRONT AXLE CAMBER

Number  Designation      Model 204.0/2 except AMG, 4MATIC with cross strut old version  Model 204.0/2 except AMG, 4MATIC with cross strut new version
BE40.20-P-1001-13O Camber at vehicle level +13.0° ∠° - -0° 04' (+22'/-28')
    +11.0° ∠° +0° 07' (+22'/-28') -0° 05' (+22'/-28')
    +9.0° ∠° -0° 07' (+22'/-28') -0° 16' (+22'/-28')
    +7.0° ∠° -0° 19' (+22'/-28') -0° 26' (+22'/-28')
    +5.0° ∠° -0° 29' (+22'/-28') -0° 34' (+22'/-28')
    +3.0° ∠° -0° 34' (+22'/-28') -
    +1.0° ∠° -0° 38' (+22'/-28') -
    -1.0° ∠° - -
BE40.20-P-1002-13O Permissible difference in front axle camber between right and left sides of the vehicle   ∠° 24' 24'
CHECK VALUES FOR FRONT AXLE CAMBER

Number  Designation      Model 204.0/2 4MATIC  Model 204.0/2 AMG
BE40.20-P-1001-13O Camber at vehicle level +13.0° ∠° -
    +11.0° ∠° - -0° 50' (122')
    +9.0° ∠° - -1° 07' (i22')
    +7.0° ∠° -0° 11' (+16'/-28') -1° 20' (i22')
    +5.0° ∠° -0° 20' (+16'/-28') -1° 32' (i22')
    +3.0° ∠° -0° 27' (+16'/-28') -1° 41' (122')
    +1.0° ∠° -0° 33' (+16'/-28') -1° 47' (122')
    -1.0° ∠° -0° 37' (+16'/-28') -
BE40.20-P-1002-13O Permissible difference in front axle camber between right and left sides of the vehicle ∠°   24' 22'
CHECK VALUES FOR FRONT AXLE CAMBER

Number  Designation      Model 204.9
BE40.20-P-1001-13O Camber at vehicle level +13.0° ∠° -
    +11.0° ∠° +0° 03' (+16'/-28')
    +9.0° ∠° -0° 11' (+16'/-28')
    +7.0° ∠° -0° 24' (+16'/-28')
    +5.0° ∠° -0° 35' (+16'/-28')
    +3.0° ∠° -0° 43' (+16'/-28')
    +1.0° ∠° -
    -1.0° ∠° -
BE40.20-P-1002-13O Permissible difference in front axle camber between right and left sides of the vehicle   ∠° 24'
CHECK VALUES FOR FRONT AXLE CAMBER

Number  Designation      Model 207
BE40.20-P-1001-13Q Camber at vehicle level +8.1° ∠° -0° 22' (+4'/-40')
    +7.1° ∠° -0° 26' (+4'/-40')
    +6.1° ∠° -0° 30' (+4'/-40')
    +5.1° ∠° -0° 34' (+4'/-40')
    +4.1° ∠° -0° 36' (+4'/-40')
    +3.1° ∠° -0° 37' (+4'/-40')
BE40.20-P-1002-13Q Permissible difference in front axle camber between right and left sides of the vehicle   ∠° 24'
CHECK AND ADJUSTMENT VALUES FOR CASTER

Number  Designation    Model 172
BE40.20-P-1001-20A Permissible difference in caster between right and left sides of the vehicle ∠° 30'
CHECK AND ADJUSTMENT VALUES FOR CASTER

Number  Designation    Model 204.0/2 except AMG, 4MATIC
BE40.20-P-1001-20E Permissible difference in caster between right and left sides of the vehicle ∠° 30'
CHECK AND ADJUSTMENT VALUES FOR CASTER

Number  Designation    Model 204.0/2 4MATIC  Model 204.0/2 AMG
BE40.20-P-1001-20E Permissible difference in caster between right and left sides of the vehicle ∠° 30' 30'
CHECK AND ADJUSTMENT VALUES FOR CASTER

Number  Designation    Model 204.9  Model 207
BE40.20-P-1001-20E Permissible difference in caster between right and left sides of the vehicle ∠° 30' 30'
WHEEL LOCATION, HUB

Number  Designation        Model 172
BA33.20-P-1002-01Q Self-locking nut, torque strut to front axle carrier Stage 1   Nm 120
    Stage 2   ∠° 180
BA33.20-P-1003-01Q Self-locking nut (repair kit) strut rod to front axle carrier Stage 1 M14X120X11.9 Nm 100
    Stage 2   ∠° 180
BA33.20-P-1005-01Q Self-locking nut for cross strut on front axle carrier Stage 1   Nm 120
    Stage 2   ∠° 180
BA33.20-P-1006-01Q Self-locking nut (repair kit) cross strut to front axle carrier Stage 1 M1412011.9 Nm 100
    Stage 2   ∠° 180
WHEEL LOCATION, HUB

Number  Designation        Model 204 except 4-MATIC, model 204.9  Model 204 4-MATIC, model 204.9
BA33.20-P-1002-01N Self-locking nut, torque strut to front axle carrier Stage 1 M14X115X10.9 Nm 80 -
    Stage 2 M14X115X10.9 ∠° 120 -
    Stage 1 M14X120X10.9 Nm 120 120
    Stage 2 M14X120X10.9 ∠° 180 180
BA33.20-P-1004-01N Self-locking nut for cross strut on front axle carrier Stage 1 M14X115X10.9 Nm 80 -
    Stage 2 M14X115X10.9 ∠° 120 -
    Stage 1 M14120X10.9 Nm 120 120
    Stage 2 M1412010.9 ∠° 180 180
BA33.20-P-1005-01N Self-locking nut (repair kit) cross strut to front axle carrier Stage 1 M1411510.9 Nm 80 -
    Stage 2 M1411510.9 ∠° 120 -
    Stage 1 M1412011.9 Nm 100 100
    Stage 2 M1412011.9 ∠° 180 180
BA33.20-P-1010-01N Self-locking nut (repair kit) strut rod to front axle carrier Stage 1 M1411510.9 Nm 80 -
    Stage 2 M1411510.9 ∠° 120 -
    Stage 1 M1412011.9 Nm 100 100
    Stage 2 M1412011.9 ∠° 180 180
WHEEL LOCATION, HUB

Number  Designation        Model 207
BA33.20-P-1002-01N Self-locking nut, torque strut to front axle carrier Stage 1 M1411510.9 Nm 80
    Stage 2 M1411510.9 ∠° 120
    Stage 1 M1412010.9 Nm 120
    Stage 2 M1412010.9 ∠° 180
BA33.20-P-1004-01N Self-locking nut for cross strut on front axle carrier Stage 1 M1411510.9 Nm 80
    Stage 2 M1411510.9 ∠° 120
    Stage 1 M1412010.9 Nm 120
    Stage 2 M1412010.9 ∠° 180
BA33.20-P-1005-01N Self-locking nut (repair kit) cross strut to front axle carrier Stage 1 M1411510.9 Nm 80
    Stage 2 M1411510.9 ∠° 120
    Stage 1 M1412011.9 Nm 100
    Stage 2 M1412011.9 ∠° 180
BA33.20-P-1010-01N Self-locking nut (repair kit) strut rod to front axle carrier Stage 1 M1411510.9 Nm 80
    Stage 2 M14X115X10.9 ∠° 120
    Stage 1 M14X120X11.9 Nm 100
    Stage 2 M14X120X11.9 ∠° 180
