Install repair bolt - AR40.20-P-0322-01CW

Camber adjustments

Cross strut in mm	Camber change	Torque strut in mm	Caster change
+4	-40'	±0	+16'
-4	+40'	±0	-16'

Caster adjustments

Cross strut in mm	Camber change	Torque strut in mm	Caster change
±0	-9'	+4	-40'
±0	+9'	-4	+40'

Camber and caster adjustments

Cross strut in mm	Camber change	Torque strut in mm	Caster change
+4	-47'	+4	-24'
-4	+50'	-4	+24'
+4	-32'	-4	+56'
-4	+31'	+4	-56'

Raise vehicle at front until it is at full rebound travel at front axle.
Remove series bolt (19a) with nut (19b) on cross strut (17).
For camber correction.

Shown on model 204.0 without 4MATIC

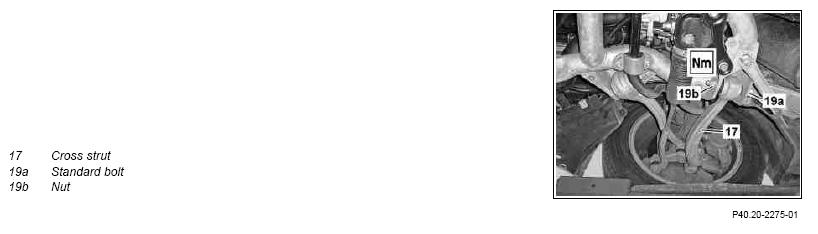

Fig 1: Identifying Cross Strut, Standard Bolt And Nut - Model 204.0 (Without 4MATIC)
Courtesy of MERCEDES-BENZ USA
Remove series bolt (19a) with nut (19b) on torque strut (18).
For caster correction.

Shown on model 204.0 without 4MATIC

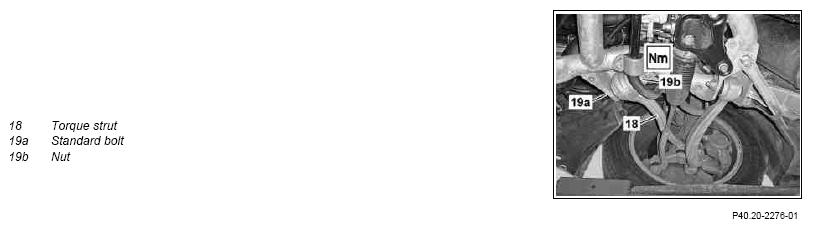

Fig 2: Identifying Torque Strut, Standard Bolt And Nut - Model 204.0 (Without 4MATIC)
Courtesy of MERCEDES-BENZ USA
To adjust camber and caster, replace respective standard bolt (19a) at strut rod or cross strut with a repair bolt (19c).

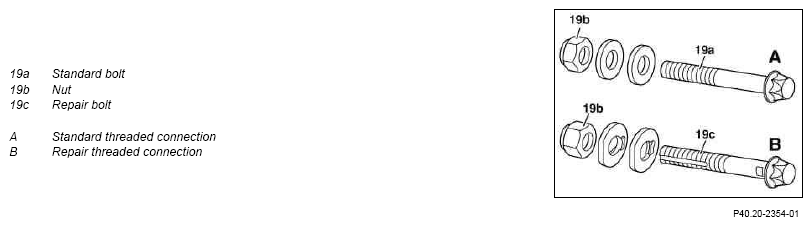

Fig 3: Identifying Standard Bolt, Nut And Repair Bolt

Courtesy of MERCEDES-BENZ USA

The standard bolt is centered by bumps (arrows) in the front axle carrier. Grooves in the repair bolt (19c) allow the bolt to be installed in the front axle carrier on either the right or left side, thereby allowing the strut rod or cross strut to be adjusted to the inside or outside.

The repair bolt (19c) must not be turned after it has been fixed in place in the front axle carrier. Do not tighten the nut yet so that the rubber mount of the strut rod and cross strut can turn when the vehicle is rocked to settle the suspension.

Fig 4: Locating Repair Bolt Grooves

Courtesy of MERCEDES-BENZ USA
