Remove/install thrust arm bushing at the wheel carrier - AR35.20-P-0105CW

MODEL 204, 207

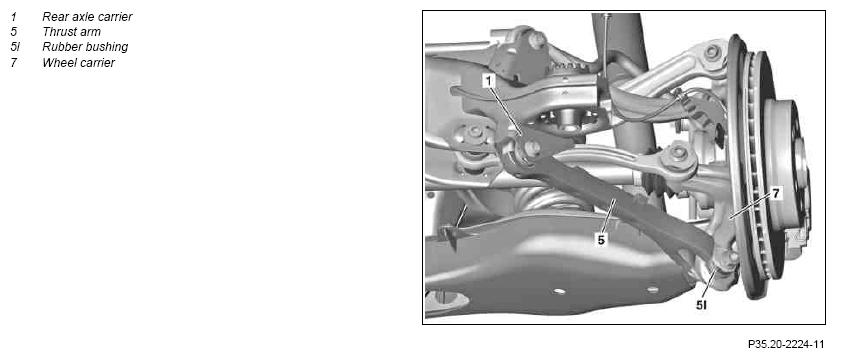

Fig 1: Identifying Rear Axle Carrier, Thrust Arm, Rubber Bushing And Wheel Carrier

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		While working on the rear axle care must be taken to ensure that the surface of all aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the of the parts will be reduced.
		Installation:  Only tighten bolts and nuts of the chassis components in the curb condition.
1	Remove rear wheel
	Remove/install wheels		AP40.10-P-4050CW
2	Detach thrust arm (5) from wheel carrier (7)		*BA35.20-P-1002-05G
3	Loosen the thrust arm (5) on the rear axle carrier (1) and fold downwards		*BA35.20-P-1001-05G
4	Remove rubber mount (5l)		AR35.20-P-0105-01CW  Fig 2
5	Install in the reverse order

TORQUE STRUT

Number	Designation				Model 204	Model 207
BA35.20-P-1001-05G	Self-locking nut, torque strut to rear axle carrier	M12	Stage 1	Nm	50	50
			Stage 2	∠°	90	90
BA35.20-P-1002-05G	Self-locking nut, thrust arm to wheel carrier	M12	Stage 1	Nm	50	50
			Stage 2	∠°	90	90

Fig 2: Identifying Extraction And Insertion Tool (204 589 03 43 00)

Courtesy of MERCEDES-BENZ USA
