Remove/install radius rod - AR35.20-P-0111CW

MODEL 204, 207

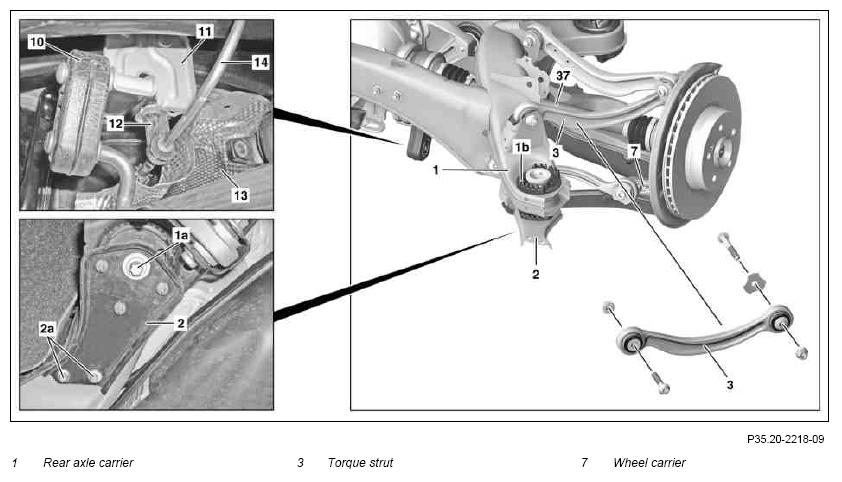

Fig 1: Identifying Rear Axle Carrier, Torque Strut And Wheel Carrier

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		While working on the rear axle care must be taken to ensure that the surface of aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the of the parts will be reduced.
		LTI Installation: Only tighten bolts and nuts of the chassis components in the curb condition.
1	Lower front rear axle carrier (1)		AR35.10-P-0015CW
2	Remove torque strut (3) from wheel carrier (7) and rear axle carrier (1)		*BA35.20-P-1002-03I  *BA35.20-P-1001-03I
3	Install in the reverse order

TORQUE STRUT

Number	Designation				Model 204	Model 207
BA35.20-P-1001-03I	Self-locking nut, tension arm to rear axle carrier	M12	Stage 1	Nm	50	50
			Stage 2	∠°	90	90
BA35.20-P-1002-03I	Self-locking nut, torque strut to wheel carrier	M12	Stage 1	Nm	50	50
			Stage 2	∠°	90	90
