Remove/install camber strut - AR35.20-P-0110CW

MODEL 204, 207

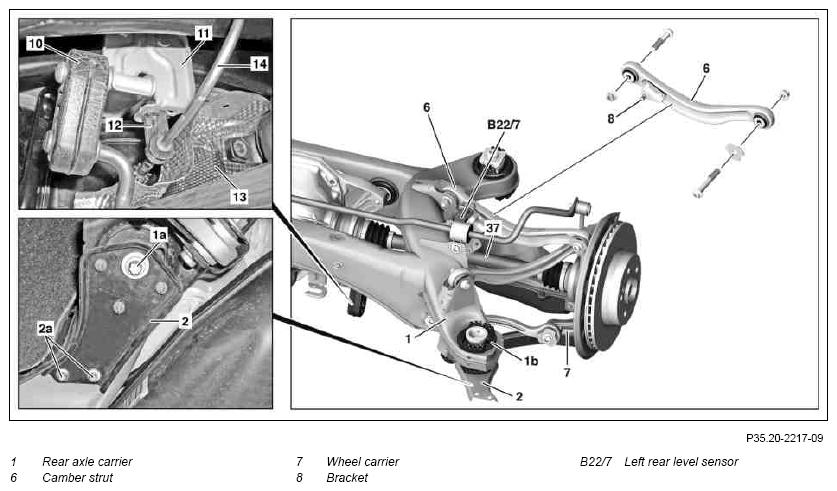

Fig 1: Identifying Rear Axle Carrier, Wheel Carrier, Left Rear Level Sensor, Camber Strut And Bracket

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		While working on the rear axle care must be taken to ensure that the surface of aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the of the parts will be reduced.
		Installation:  Only tighten bolts and nuts of the chassis components in the curb condition.
1	Lower front rear axle carrier (1)		AR35.10-P-0015CW
2.1	Detach bracket (8) of link rod of left rear level sensor (B22/7) from camber strut (6)	Vehicles with bi-xenon headlamps and without code (483) ADVANCED AGILITY package
2.2	Detach bracket (8) of link rods of left, right level sensors (B22/7, B22/10) from camber struts (6)	Vehicles with code (483) ADVANCED AGILITY package
3	Remove camber strut (6) from wheel carrier (7) and rear axle carrier (1)		*BA35.20-P-1002-02I  *BA35.20-P-1001-02I
4	Install in the reverse order

CAMBER STRUT

Number	Designation				Model 204	Model 207
BA35.20-P-1001-02I	Self-locking nut, camber strut to rear axle carrier.	M12	Stage 1	Nm	50	50
			Stage 2	∠°	90	90
BA35.20-P-1002-02I	Self-locking nut, camber strut to wheel carrier.	M12	Stage 1	Nm	50	50
			Stage 2	∠°	90	90
