Remove/install stabilizer bar on rear axle - AR32.20-P-0315CW
CAUTION:
Risk of death caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.
While working on the rear axle care must be taken to ensure that the surface of all aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the of the parts will be reduced.

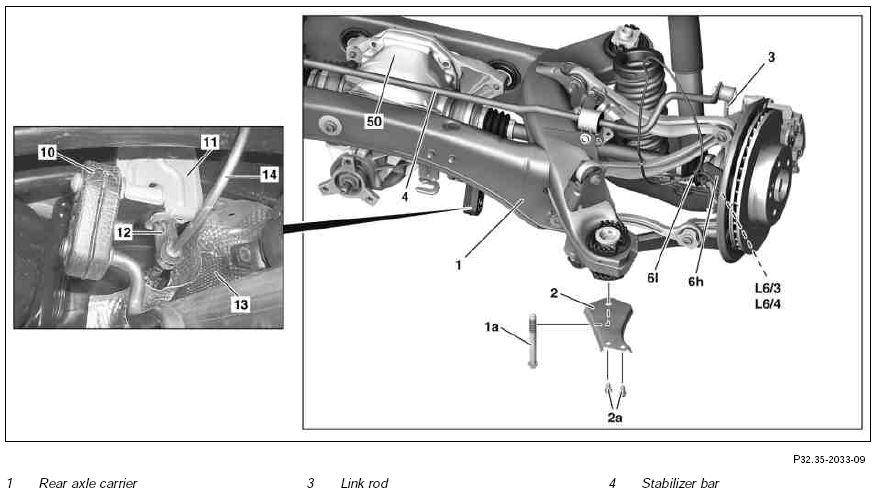

Lower front rear axle carrier (1). See AR35.20-P-0115CW .
Detach link rods (3) from torsion bar (4). See BA32.20-P-1002-04N .
Detach torsion bar (4) from rear axle carrier 1) and remove. See BA32.20-P-1003-04N .
Install in the reverse order.
REAR AXLE STABILIZER BAR TIGHTENING TORQUE
| Number | Designation | Model 204 except model 204.077/ 277/377 | Model 204.077/ 277/377 |
|---|---|---|---|
| BA32.20-P-1002-04N | Nut, link rod to stabilizer bar | 50 Nm | 50 Nm |
| BA32.20-P-1003-04N | Bolt, torsion bar to rear axle carrier | 80 Nm | 70 Nm |
