Check track rod and drag link linkage for play, check rubber boots - AP46.00-P-4653CW

MODEL 204, 207

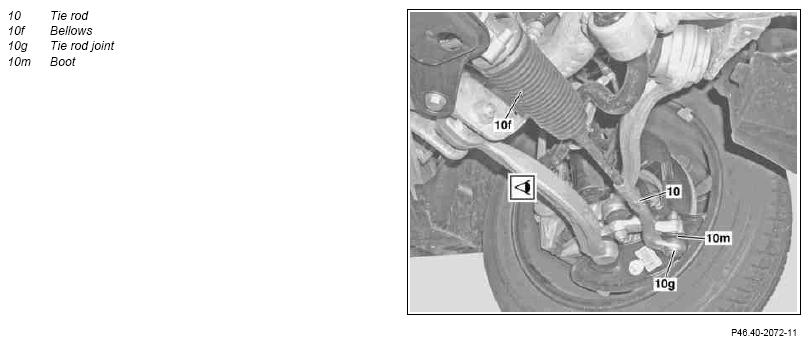

Fig 1: Checking Track Rod And Drag Link Linkage Play And Rubber Boots

Courtesy of MERCEDES-BENZ USA

	Checking
Danger!	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
Danger!	Risk of injury  caused by moving parts that can pinch, crush  or, in extreme cases, even sever  extremities	No parts of the body or limbs should be within the operating range of the mechanism when moving components.	AS00.00-Z-0009-01A
1	Turn key in ignition lock into position 0
2	Hoist vehicle with lifting platform until wheels are free
3	Check boots (10m) and tie rod joint (10g)	Check boots (10m) for condition, leaktightness and correct seat. Check play of tie rod joint (10g) by pulling and pushing firmly on the tie rod (10). If problems exist:↓ Replace tie rod (10).	AR46.40-P-0200CW
4	Check boots (10f)	Do not check the bellows (10f) by pressing in or around the beads as this causes damage to the material, eventually resulting in leaks.
		Stretch bellows (10f) by turning steering to left and right wheel lock; check for cracks, indentations and chafing. If problems exist:↓
		Replace boot (10f).	AR46.40-P-0400CW
5	Lower vehicle
