Remove/install rear seat backrest side padding - AR91.12-P-1710CX
MODEL 204.2 /9
| Remove//install | |||
| 1 | Remove rear seat cushion | AR91.12-P-1020CW | |

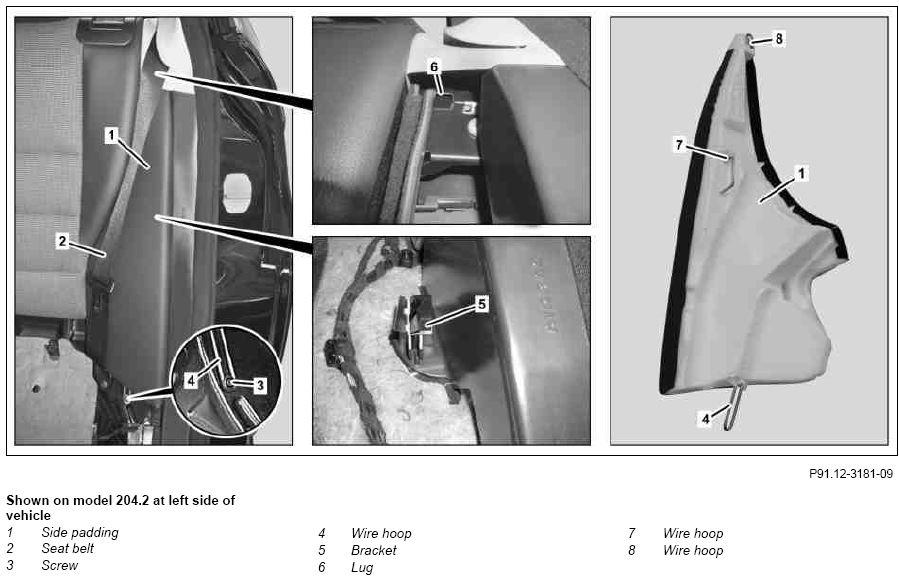

| 2 | Unscrew bolt (3) from wire bracket (4) of left and right side bolsters (1) | ||
| 3 | Pull seat belt (2) to one side | ||
| 4 | Guide wire bracket (7) of side bolster (1) out of bracket (5) at wheel well | Installation: Ensure that the wire bracket (7) is seated correctly in the bracket (5). | |
| 5 | Pull out wire bracket (8) of side bolster (1) downwards out of lug (6) and remove side bolster (1) from vehicle | Installation: Ensure that side bolster (1) is correctly seated in the surrounding components. | |
| 6 | Install in the reverse order |
