Remove/install rear bumper - AR88.20-P-2200CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C350, 2010 Mercedes-Benz C350, 2009 Mercedes-Benz C350, and 2008 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0/2/3

Danger!	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Meaning of symbols (Logos) for picture/picture documents		OV00.01-P-1901-07A
1	Remove trim from rear end center assembly	Model 204.0/3	AR68.30-P-4600CW
		Model 204.2	AR68.30-P-4785CX

Shown on Model 204

Fig 1: Identifying Rear Bumper Remove/Install Components (1 Of 11)

G07525302

Courtesy of MERCEDES-BENZ USA

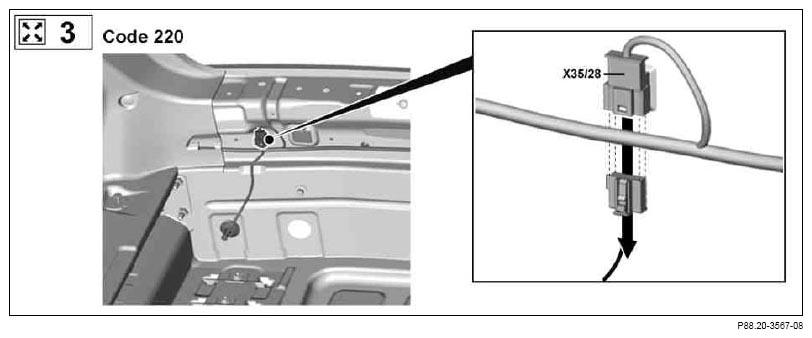

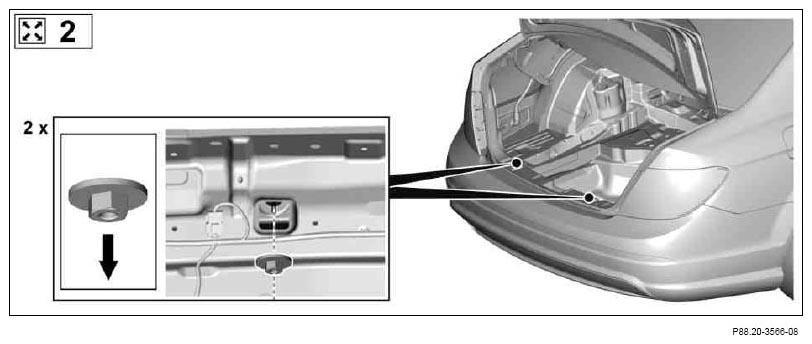

Fig 2: Identifying Rear Bumper Remove/Install Components (2 Of 11)

G07525303

Courtesy of MERCEDES-BENZ USA

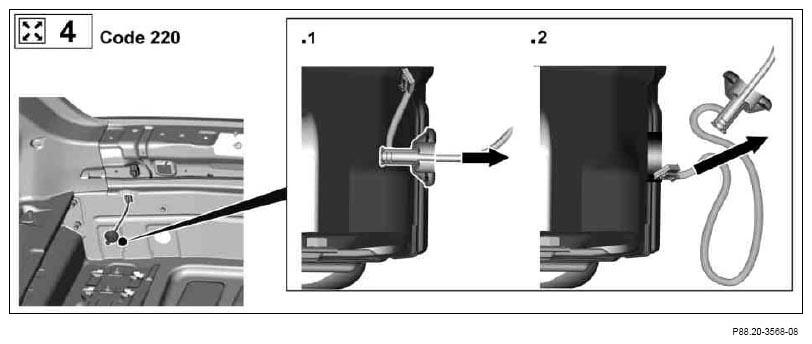

Fig 3: Identifying Rear Bumper Remove/Install Components (3 Of 11)

G07525304

Courtesy of MERCEDES-BENZ USA

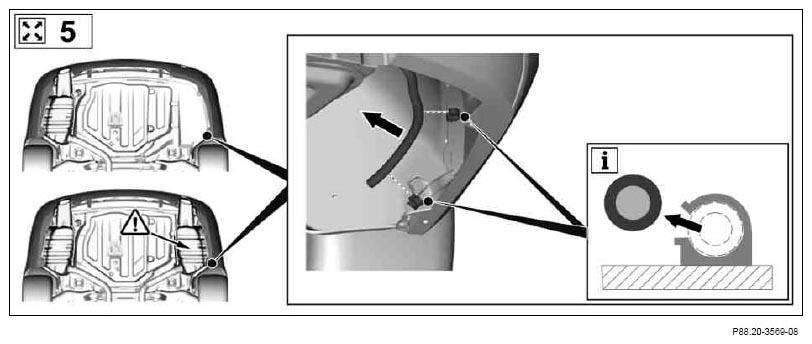

Fig 4: Identifying Rear Bumper Remove/Install Components (4 Of 11)

G07525305

Courtesy of MERCEDES-BENZ USA

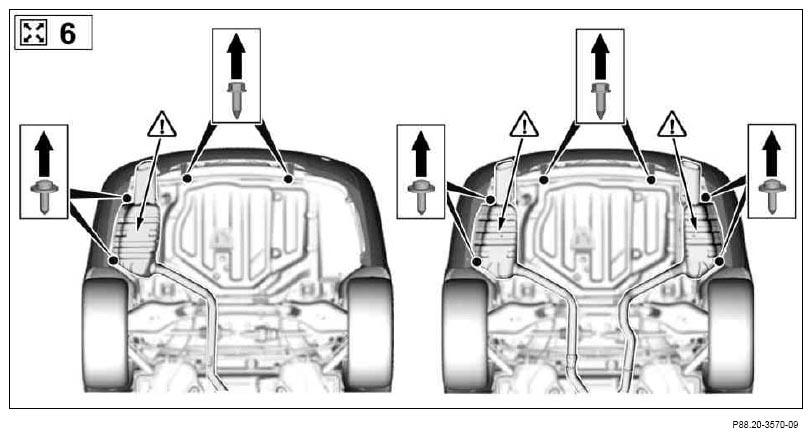

Fig 5: Identifying Rear Bumper Remove/Install Components (5 Of 11)

G07525306

Courtesy of MERCEDES-BENZ USA

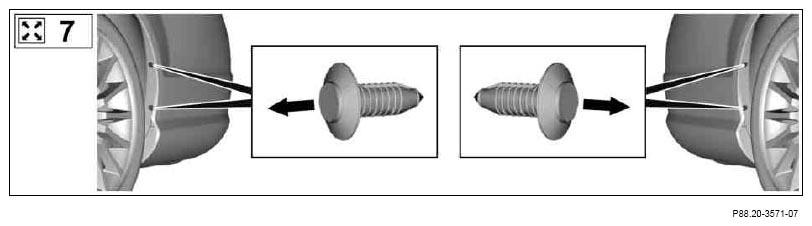

Fig 6: Identifying Rear Bumper Remove/Install Components (6 Of 11)

G07525307

Courtesy of MERCEDES-BENZ USA

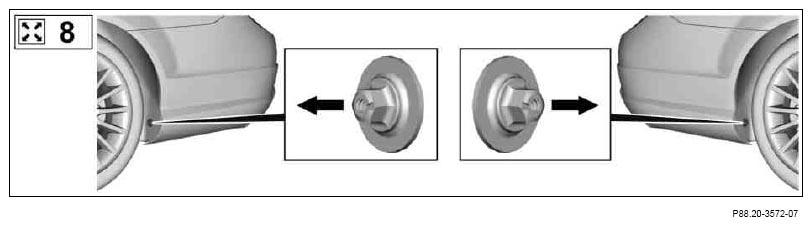

Fig 7: Identifying Rear Bumper Remove/Install Components (7 Of 11)

G07525308

Courtesy of MERCEDES-BENZ USA

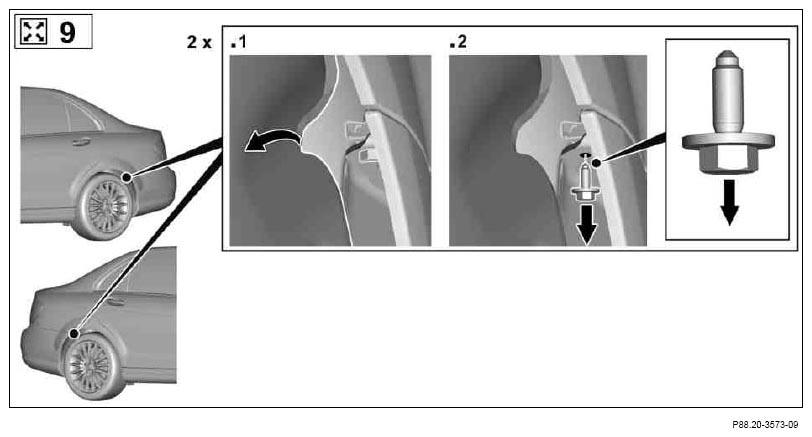

Fig 8: Identifying Rear Bumper Remove/Install Components (8 Of 11)

G07525309

Courtesy of MERCEDES-BENZ USA

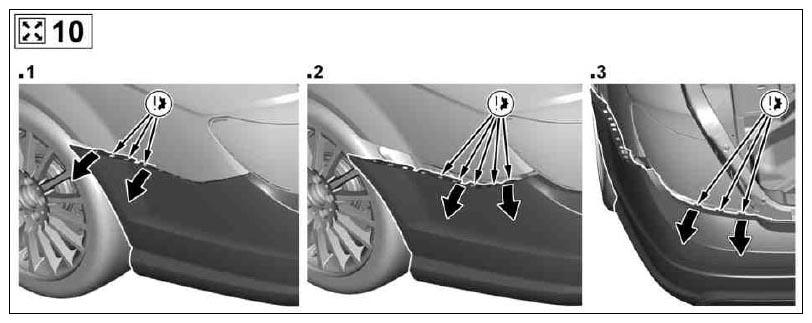

Fig 9: Identifying Rear Bumper Remove/Install Components (9 Of 11)

G07525310

Courtesy of MERCEDES-BENZ USA

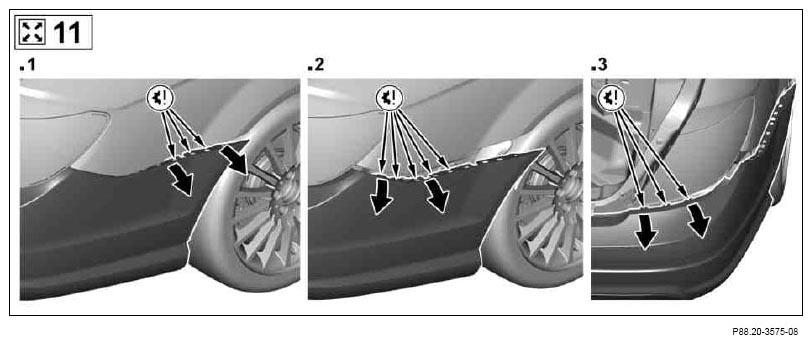

Fig 10: Identifying Rear Bumper Remove/Install Components (10 Of 11)

G07525311

Courtesy of MERCEDES-BENZ USA

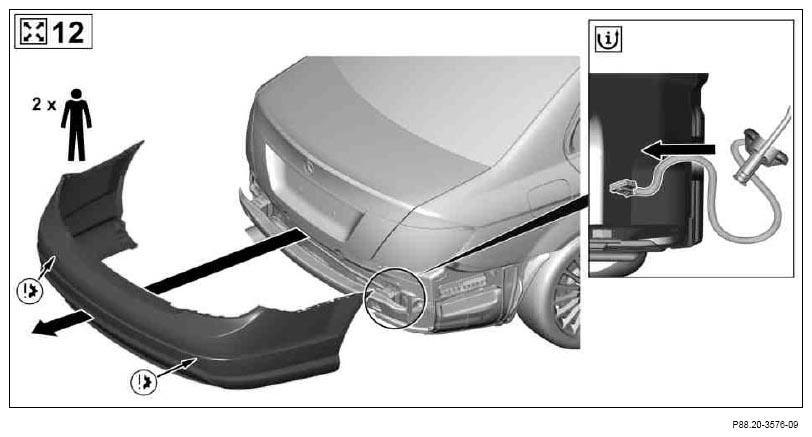

Fig 11: Identifying Rear Bumper Remove/Install Components (11 Of 11)

G07525312

Courtesy of MERCEDES-BENZ USA

12 to 1

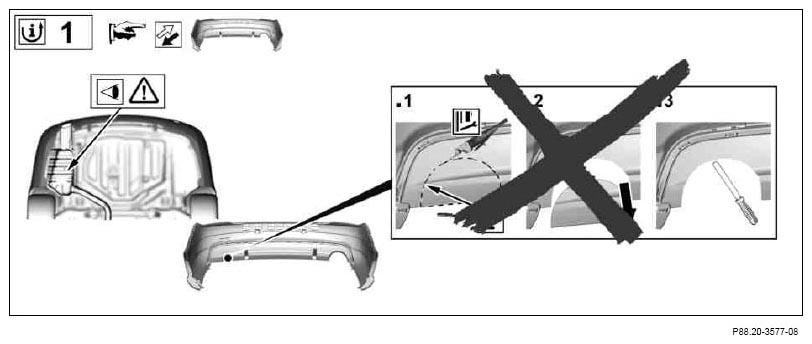

Fig 12: Inspecting Front Bumper (1 Of 3)

G07525313

Courtesy of MERCEDES-BENZ USA

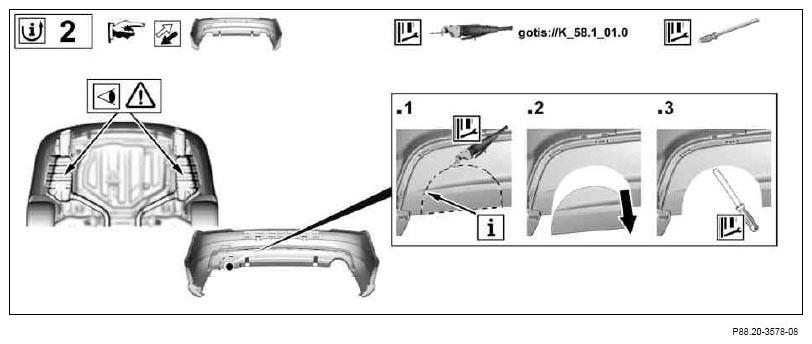

Fig 13: Inspecting Front Bumper (2 Of 3)

G07525314

Courtesy of MERCEDES-BENZ USA

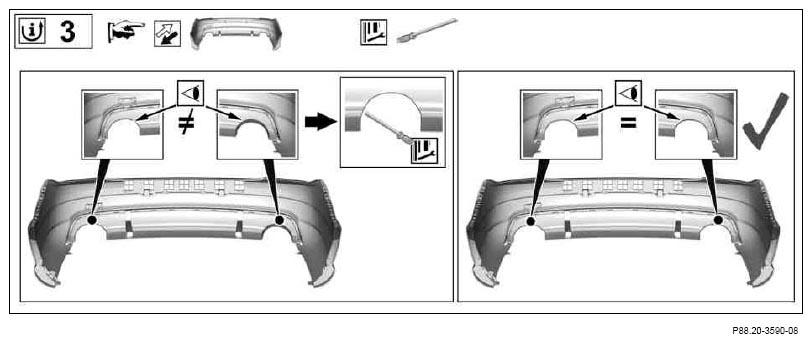

Fig 14: Inspecting Front Bumper (3 Of 3)

G07525315

Courtesy of MERCEDES-BENZ USA
