Remove/install left front or right RPM sensor - AR42.30-P-0712CW
MODEL 172, 204
Shown on model 204
| Remove/install | |||
|---|---|---|---|
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Switch off ignition | ||
| 2 | Remove left or right front wheel | Model 172 | AP40.10-P-4050V |
| Model 204 | AP40.10-P-4050CW | ||
| 3.1 | Detach fender liner (1) from the front fender in the rear area far enough until the electrical connector (2) is accessible | Model 172 | AR88.10-P-1300W |
| 3.2 | Remove rear section of fender liner (1) in front fender | Model 204 | |
| 4 | Disconnect electrical connector (2) on front axle electrical distributor | Model 172 | AR33.10-P-0100-06V |
| Model 204 | AR33.10-P-0100-06CW | ||
| 5 | Unclip electrical line of the left front axle rpm sensor (L6/1) and the right front axle rpm sensor (L6/2) on line bracket (3) | ||
| 6 | Remove cable tie (4) from suspension strut (5) | Except model 204 with engine 156, except model 204.9 |

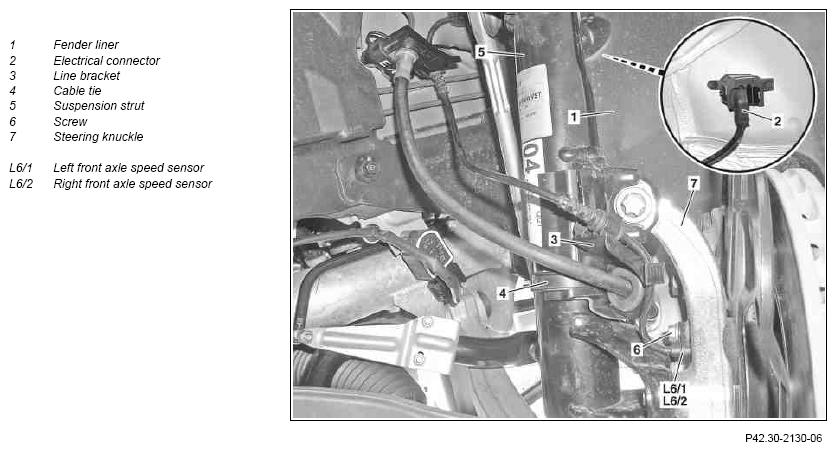

Fig 2 |
| 7 | Remove bolt (6) and pull left front axle rpm sensor (L6/1) and right front axle rpm sensor (L6/2) out of steering knuckle (7) | ||
| 8 | Install in the reverse order | ||
| 9 | Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
