Adjust front door - AR72.10-P-0550CW

MODEL 204, 207, 212, 218

Shown on model 204.0

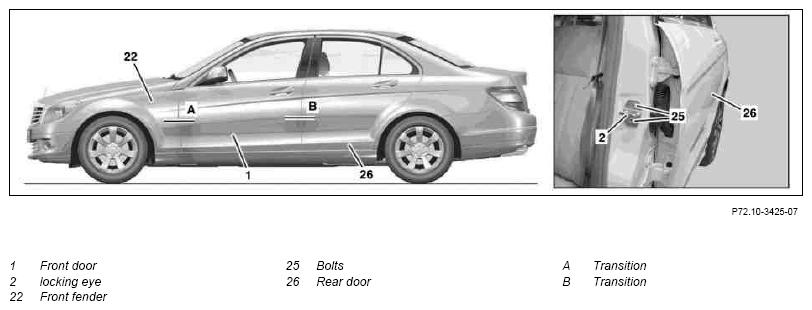

Fig 1: Identifying Front Door Components

Courtesy of MERCEDES-BENZ USA

Shown left side front door (1) on Model 204.0

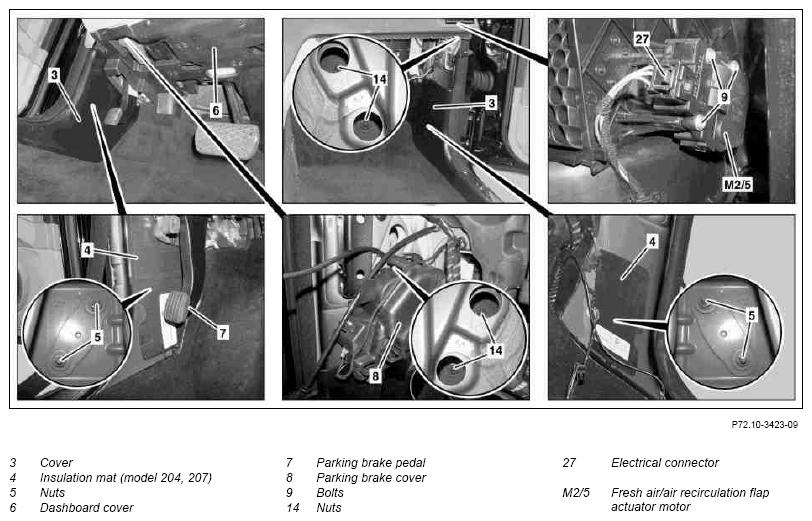

Fig 2: Identifying Left Side Front Door Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Shown left side front door (1) on Model 204.0

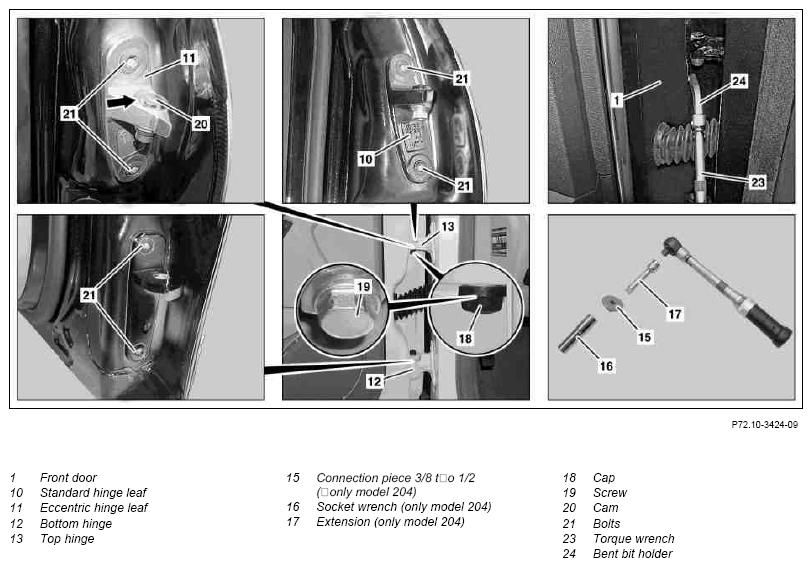

Fig 3: Identifying Left Side Front Door Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Checking
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
		On model 204, 207, 212 two different versions of upper hinges (13) can be installed. If an eccentric hinge leaf (11) is installed on the front door (1), the preliminary work required for reaching nuts (14) on the upper hinge (13) is eliminated. The eccentric (20) is located on the top side (arrow) of the eccentric hinge leaf (11).
1	Check gap dimensions at front door (1)	Feeler gauge	Fig 4
		Gaps on hoods, doors and covers: Model 204.0/2	AR60.00-P-0700-01CW
		Gap dimensions "G, H, I, W"	*BE60.00-P-1002-01U
		Model 204.9	AR60.00-P-0700-01WX
		Gap dimensions "G, H, I, W"	*BE60.00-P-1002-01U
		Model 207	AR60.00-P-0700-01EC
		Gap dimensions "F, G"	*BE60.00-P-1002-01W
		Model 212	AR60.00-P-0700-01EW
		Gap dimensions "G, H, I, W"	*BE60.00-P-1002-01U
		Model 218	AR60.00-P-0700-01EL
		Gap dimensions "E, F"	*BE60.00-P-1002-01O
	Removing
2	Remove left or right trim (3)	Completely depress parking brake pedal (7) toward front to remove paneling (3) on driver side.
3	Expose nuts (5)	EC On model 204, 207 it is necessary to detach the insulation mat (4). On model 212, 218 a cap must be removed.
4	Remove dashboard cover (6).	When adjusting driver side front door (1), if a standard hinge leaf (10) is installed.
5	Remove parking brake cover (8).	When adjusting driver side front door (1), if a standard hinge leaf (10) is installed.
6	Remove glove box	When adjusting passenger side front door (1), if a standard hinge leaf (10) is installed.
		Model 204.0/2	AR68.10-P-1200CW
		Model 204.9	AR68.10-P-1200CY
		Model 207	AR68.10-P-1400EC
		Model 212	AR68.10-P-1200EW
		Model 218	AR68.10-P-1400EL
7	Unscrew bolts (9) and remove fresh air/recirculated air flap actuator motor (M2/5)	When adjusting passenger side front door (1), if a standard hinge leaf (10) is installed. Do not disconnect electrical connector (27).
8	Remove locking eye (2)	Mark installation position of lock striker (2) to facilitate installation.
	Adjust
9	Loosen bolts on lower hinge (12) on outside of A-pillar	Model 207
10	Loosen bolts on upper hinge (13) on outside A-pillar	Model 207, if a standard hinge leaf (10) is installed.
11	Loosen nuts (5) on bottom hinge (12) from A-pillar.
12.1	Loosen nuts (14) on top hinge (13) from A-pillar and adjust corresponding gap dimensions by moving front door (1). Then tighten nuts (14).	If a standard hinge leaf (10) is installed. On model 204 a connection piece 3/8 to 1/2 (15) and a socket wrench (16) with a length of 77 mm and key width of 13 mm is required to tighten nuts (14) A corresponding extension (17) is required additionally at the driver side. Connection piece 3/8 to 1/2 (15) and socket wrench (16)
		Feeler gauge Gaps on hoods, doors and covers:	Fig 4
		Model 204.0/2	AR60.00-P-0700-01CW
		Gap dimensions "G, H, I, W"	*BE60.00-P-1002-01U
		Model 204.9	AR60.00-P-0700-01WX
		Gap dimensions "G, H, I, W"	*BE60.00-P-1002-01U
		Model 207	AR60.00-P-0700-01EC
		Gap dimensions "F, G"	*BE60.00-P-1002-01W
		Model 212	AR60.00-P-0700-01EW
		Gap dimensions "G, H, I, W"	*BE60.00-P-1002-01U
		Model 218	AR60.00-P-0700-01EL
		Gap dimensions "E, F"	*BE60.00-P-1002-01O
		Model 204, 207, 212	*BA72.10-P-1002-01S
		Model 218	*BA72.10-P-1004-01M
12.2	Remove cap (18), loosen bolt (19) and adjust corresponding gap dimensions by turning eccentric (20). Then tighten bolt (19).	If an eccentric hinge leaf (11) is installed.
		Feeler gauge	Fig 4
		Gaps on hoods, doors and covers: Model 204.0/2	AR60.00-P-0700-01CW
		Gap dimensions "G, H, I, W"	*BE60.00-P-1002-01U
		Model 204.9	AR60.00-P-0700-01WX
		Gap dimensions "G, H, I, W"	*BE60.00-P-1002-01U
		Model 207	AR60.00-P-0700-01EC
		Gap dimensions "F, G"	*BE60.00-P-1002-01W
		Model 212	AR60.00-P-0700-01EW
		Gap dimensions "G, H, I, W"	*BE60.00-P-1002-01U
		Model 218	AR60.00-P-0700-01EL
		Gap dimensions "E, F"	*BE60.00-P-1002-01O
		Model 204, 207, 212	*BA72.10-P-1002-01S
		Model 218	*BA72.10-P-1004-01M
13	Tighten nuts (5) on bottom hinge (12).	Model 204, 207, 212	*BA72.10-P-1002-01S
		Model 218	*BA72.10-P-1004-01M
14	Tighten bolts on upper hinge (13) on outside of A-pillar	Model 207, if a standard hinge leaf (10) is installed.	*BA72.10-P-1002-01S
15	Tighten bolts on lower hinge (12) on outside of A-pillar	Model 207	*BA72.10-P-1002-01S
16	Loosen bolts (21) on inner door panel and adjust transition (A) to front fender (22) by moving front door (1).	CThe contour of the front fender (22) must be flush with the contour of the front door (1) or project by a maximum of 1 mm.
17	Tighten bolts (21)	Model 204, 207, 212	*BA72.10-P-1001-01S
		Model 218	*BA72.10-P-1003-01M
	Notes on calculating tightening torque when using insertion tool with various effective lengths.		AH00.00-P-0015-01CW
18	Insert lock striker (2) and screw in bolts (25) up to stop	It should still be possible to adjust the lock striker (2).
19	Adjust transition (B) between front door (1) and rear door (26) by moving lock striker (2).	The contour of the front door (1) must be flush with the contour of the rear door (26) or project by a maximum of 1 mm.
20	Tighten bolts (25)	Model 204, 207, 212	*BA72.10-P-1004-01S
		Model 218	*BA72.10-P-1009-01M
	Install
21	Repair paint damage on screw heads (19, 21)	Repair screw heads (19) only if an eccentric hinge leaf (11) is installed.
22	Install cap (18).	If an eccentric hinge leaf (11) is installed.
	Risk of explosion  and poisoning  caused by solvent vapors and gasses. Risk of injury  to skin and eyes when working with anticorrosion agents	Never spray anticorrosion agents on flames or glowing hot objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection.	AS97.00-Z-0001-01A
23	Protect front door (1) and A-pillar in area of upper door hinge (13) and lower door hinge (12) against corrosion; remove excessive wax.	Wax preservative, aerosol	*BR00.45-Z-1018-05A
24	Install fresh air/recirculated air flap actuator motor (M2/5) and tighten with bolts (9).	If the front passenger door (1) is adjusted with a standard hinge leaf (10).
25	Install glove box	If the front passenger door (1) is adjusted with a standard hinge leaf (10).
		Model 204.0/2	AR68.10-P-1200CW
		Model 204.9	AR68.10-P-1200CY
		Model 207	AR68.10-P-1400EC
		Model 212	AR68.10-P-1200EW
		Model 218	AR68.10-P-1400EL
26	Install parking brake cover (8).	If the front driver door (1) is adjusted with a standard hinge leaf (10).
27	Install dashboard cover (6).	If the front driver door (1) is adjusted with a standard hinge leaf (10).
28	Glue on left or right damper mat (4)	Model 204, 207
29	Install cap at inside of lower A-pillar	Model 212, 218
30	Install left or right paneling (3)

Fig 4: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA
