Remove/install headliner (MODEL 204.3, 207.3) - AR68.30-P-4300EC
MODEL 204.3, 207.3
| Remove/install | |||

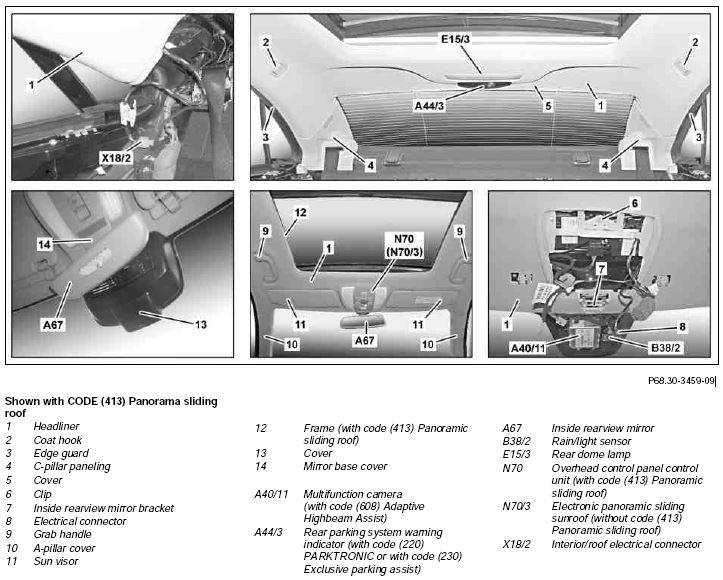

| 1 | Remove left and right paneling from C-pillars (4) | Lay both panelings on C-pillars (4) down to side with seat belts attached. | AR68.30-P-4490EC |
| 2 | Disconnect interior/roof electrical connector (X18/2) | ||
| 3 | Remove coat hanger hook (2) | ||
| 4 | Remove grab handles (9) on roof | ||
| 5 | Remove paneling from A-pillars (10) | Assembly wedge: Figure | |
| 6 | Remove sun visor (11) together with counterbearing | ||
| 7.1 | Remove overhead control panel control unit (N70) and cover from mirror base (14) | With code (413) panorama sliding roof | AR82.20-P-1000CW |
| 7.2 | Remove overhead control panel (N70/3) and mirror base cover (14) | without code (413) Panoramic sliding sunroof | AR82.20-P-1000CW |
| 8 | Remove inside rearview mirror (A67) | ||
| 9 | Unclip and remove cover (13) | Assembly wedge: Figure | |
| 10 | Disconnect electrical connector (8) from rain/ light sensor (B38/2) | ||
| 11 | Remove inside rearview mirror bracket (7) | ||
| 12 | Remove clip (6) | Clip remover: 452 589 016 300 | |
| 13 | Move backrest in driver seat and passenger seat down as far as possible | This gap is needed so that the headliner (1) can be taken out of the vehicle. | |

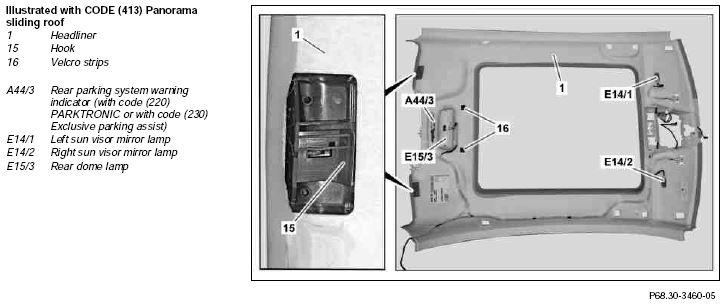

| 14 | Unhook headliner (1) from frame (12) | Only with code (413) Panoramic sliding roof | |
| 15 | Open velcro strips (16) | On model 204.3, 207.3 without code (413) Panoramic sliding roof, the velcro strips (16) are located one after another in the roor center. | |
| 16 | Slide headliner (1) toward rear until hooks (15) can move out of the roof paneling and place headliner (1) on seats | Use aid of helper. | |
| 17 | Guide headliner (1) out of interior compartment | Use aid of helper. Ensure that the edge areas of the headliner (1) are not damaged. |
|
| 18 | Remove left sun visor mirror lamp (E14/1) and right sun visor mirror lamp (E14/2) | Only when replacing headliner (1). | |
| 19 | Remove rear dome lamp (E15/3) | Only when replacing headliner (1). | Assembly wedge: Figure |
| 20 | Remove rear parking system warning display (A44/3) | Only when replacing headliner (1) and only on vehicles with code (220) PARKTRONIC or with code (230) Exclusive parking assist. | Assembly wedge: Figure |
| 21 | Take off cover (5) | Only when replacing headliner (1). | |
| 22 | Install in the reverse order |
