Remove/install panoramic front glass roof (MODEL 204.0/2/9) - AR77.21-P-0500CW
MODEL 204.0/2/9 with CODE (413) Panoramic sliding roof
Shown on left side of panoramic roof
| Removing | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |

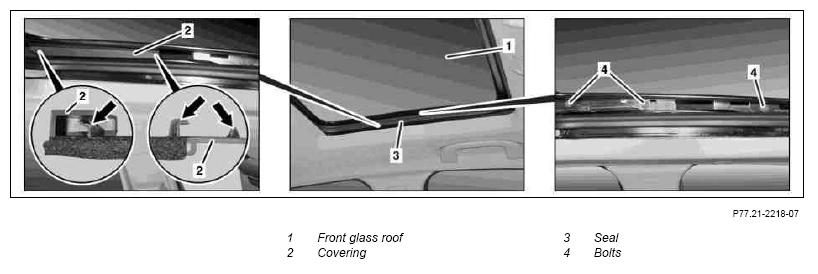

| 1 | Move front glass roof (1) to tilt position | ||
| 2 | Unclip left and right covering (2) from catch hook (arrows) and remove. | ||
| 3 | Loosen seal (3) in area of bolts (4) on left and right side of front glass roof (1). | ||
| 4 | Remove bolts (4) | ||
| 5 | Remove front glass roof (1). | ||
| Install | |||
| 6 | Insert front glass roof (1) and screw in bolts (4). | ||
| 7 | Adjust front glass roof (1) and complete vehicle | AR77.21-P-0501CW |
