Adjust front panoramic glass roof (MODEL 204.0 12/9) - AR77.21-P-0501CW

MODEL 204.0 12/9 with CODE (413) Panoramic sliding roof

Shown on left side of front glass roof

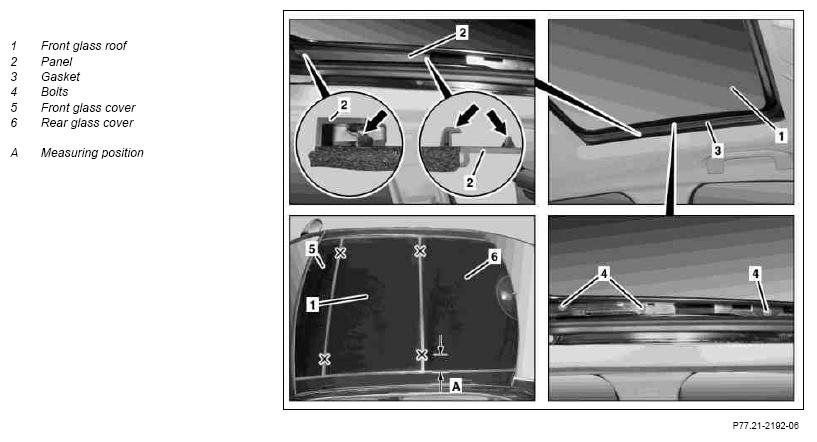

Fig 1: Identifying Adjustment Of Front Panoramic Glass Roof

Courtesy of MERCEDES-BENZ USA

	Removing
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1	Move front glass roof (1) to tilt position
2	Remove left and right cover (2)
3	Loosen seal (3) in area of bolts (4)
4	Loosen bolts (4); do not remove completely
5	Close front glass roof (1).
	Adjust
6	Adjust front glass roof (1).	Align front glass roof (1) between front glass roof cover (5) and rear glass roof cover (6) so that gap dimension on front and rear sealing joint is approximately same. Observe measuring position (A) for height adjustment Height setting	*BE77.21-P-1001-01E
7	Tighten bolts (4)
	Install
8	Move front glass roof (1) to tilt position
9	Fasten seal (3)
10	Install left and right cover (2)	Ensure that covers (2) arrest correctly in front and rear mounts (arrows).
11	Synchronize panoramic roof and perform teach-in run for panoramic roof Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
