Remove/install outer support for panoramic front glass roof - AR77.21-P-0520EW
MODEL 166, 204.3, 207.3, 212.0 /1 /2 with CODE (413) Panoramic glass roof with top sliding roof
| Remove/install | |||
| Danger! | Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A |
| 1 | Remove left and right drip rail from panoramic sliding roof | Model 204.3, 207.3, 212.0 /1 | AR88.80-P-4000EW |
| 2.1 | Remove upper and lower rubber on left and right form glass roof (3) at front | Model 204.3, 207.3, 212.0 /1 | AR77.21-P-0530EW |
| 2.2 | Remove front glass roof from panoramic sliding roof | Model 212.2 | - |

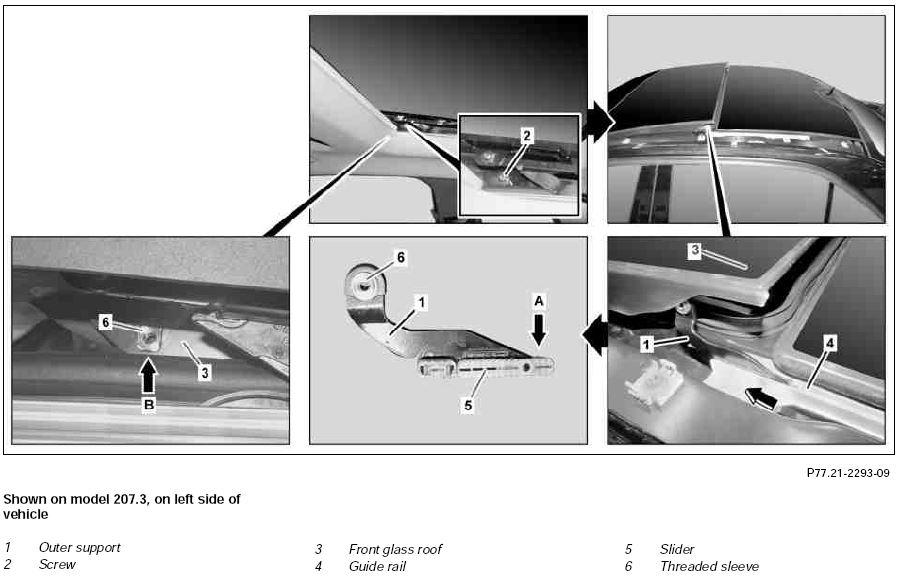

| 3 | Unscrew bolt (2) on left and right outer support (1) | Secure outer support (1) threaded sleeve (6) against twisting with the aid of a helper. Installation: Position threaded sleeve (6) of outer support (1) on the mount (arrow B) on front glass roof (3). |
|
| 4 | Remove outer support (1) from guide rail in direction of arrow | Installation: Guide outer support (1) into guide rail (4) with short side (arrow A) of slider (5). | |
| 5 | Install in the reverse order |
