Remove/install motor for roller sun blind on panoramic sliding roof - AR77.21-P-0490EW
MODEL 204.3, 207.3, 212.0/1/2 with CODE 413 (Panoramic glass roof with top sliding roof)
| Remove/install | |||
| 1.1 | Loosen headliner (1) in front area | MODEL 204.3, 207.3 with CODE 413 (Panoramic glass roof with top sliding roof) | AR68.30-P-4300EC |
| 1.2 | Loosen headliner (1) in front area up to B- pillars | MODEL 212.0/1/2 | |
| 2 | Lower headliner (1), disconnect electrical connector (3) | Carefully lower headliner (1). Headliner (1) can be damaged. | |

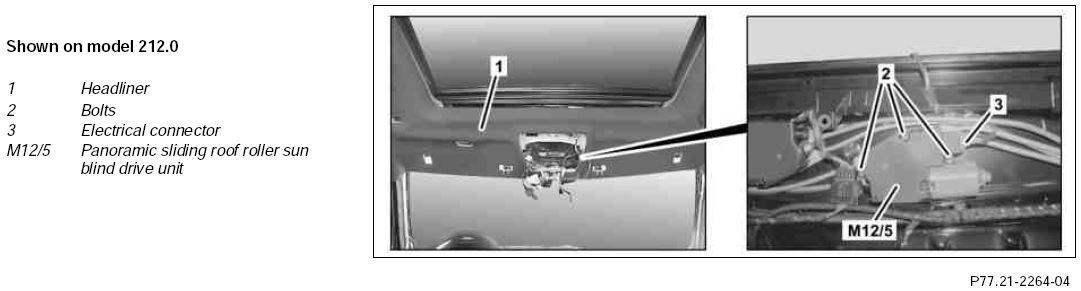

| 3 | Carefully lower headliner (1), remove screws (2) and remove panoramic sliding sunroof roller sun blind drive unit (M12/5) | Carefully lower headliner (1). Headliner (1) can be damaged. Installation: First position bolts (2) and then tighten. |
|
| 4 | Install in the reverse order | ||
| 5 | Perform teach-in run for anti-pinch protection and normalization of panoramic sliding sunroof Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
