Remove/install glass roof on tilting/sliding roof - AR77.20-P-2852CW
MODEL 204.0/2, 212 with CODE (414) Power glass tilting/sliding roof
Shown on model 204.0
| Removing | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |

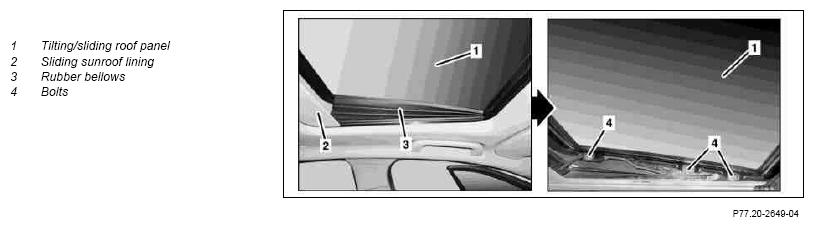

| 1 | Move tilting/sliding roof panel (1) into tilt position | ||
| 2 | Completely open sliding roof lining (2) | ||
| 3 | Remove left and right rubber bellows (3) | ||
| 4 | Loosen center bolt (4), do not unscrew completely | ||
| 5 | Unscrew front and rear bolts (4) | ||
| 6 | Remove tilting/sliding roof panel (1) | ||
| Install | |||
| 7 | Insert tilting/sliding roof panel (1) and screw in bolts (4) | ||
| 8 | Adjust tilting/sliding roof panel (1) and complete vehicle | AR77.20-P-1100CW |
