Remove/install drive cable for panoramic sunroof roller sun blind - AR77.21-P-0230EC
MODEL 204.3, 207.3 with CODE (413) Panoramic glass roof with top sliding roof
| Remove/install | |||
| Danger! | Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A |
| 1 | Remove roller sun blind of the panoramic sliding sunroof | AR77.21-P-0215EC | |
| 2 | Remove roller sun blind motor on panoramic sliding roof | AR77.21-P-0490EW | |

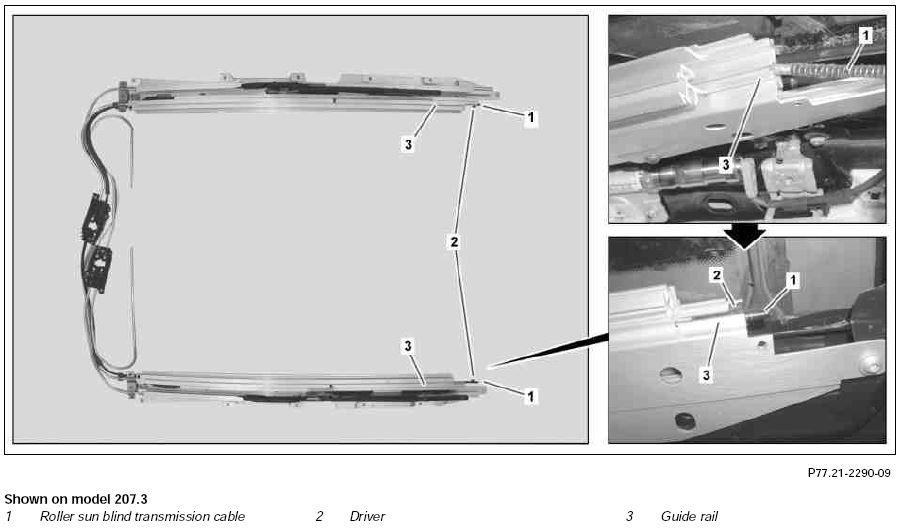

| 3 | Pull roller sun blind drive cable (1) out backwards from the guide rails (3) | Installation: Position the roller sun blind drive cable (1) so that the drivers (2) on the roller sun blind drive cable (1) point inwards. | |
| 4 | Install in the reverse order |
