Remove/install trim at C-pillar (MODEL 204.0) - AR68.30-P-4490CW

MODEL 204.0

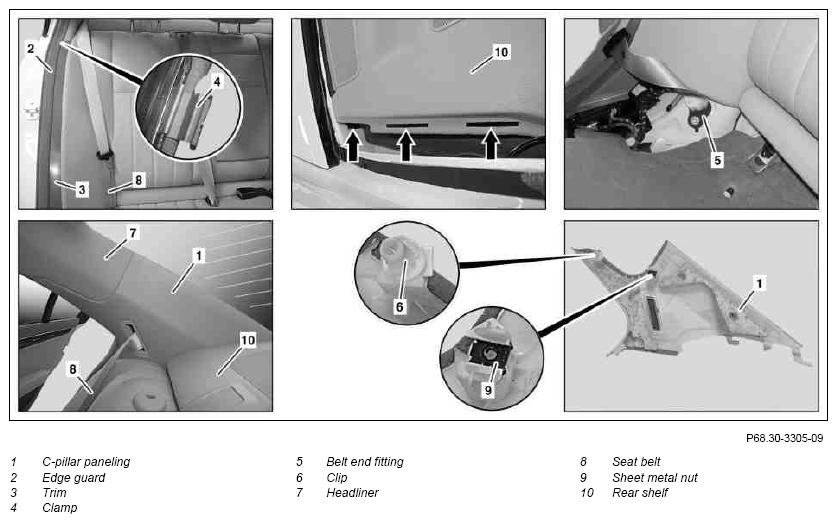

Fig 1: Identifying Trim At C-pillar Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Removing
1	Remove edge guard (2) in area of C-pillar paneling (1) and upper area of paneling (3).
2	Unclip clamp (4).		Fig 2
3	Remove rear seat cushion		AR91.12-P-1020CW
4	Remove belt end fitting (5)
5	Unclip C-pillar paneling (1) from clip (6) and pull toward front; slightly pivot in direction of center of vehicle and remove toward front from C-pillar.	Carefully remove C-pillar paneling (1). Danger of damaging headliner (7). Clip (6) remains on C-pillar paneling (1).
			Fig 2
6	Pull seat belt (8) through passage out of C-pillar paneling (1).
	Install
7	Install sheet metal nut (9), which stuck in C-pillar mount during removal, in C-pillar paneling (1).
8	Pull seat belt (8) through passage in C-pillar paneling (1)	Do not twist seat belt (8).
9	Position C-pillar paneling (1) in openings (arrows) in rear shelf (10) and body.	Thereby hold C-pillar paneling (1) pivoted slightly in direction of center of vehicle.
10	Clip C-pillar paneling (1) to C-pillar.	Observe transition to headliner (7).
11	Install belt end fitting (5)	Do not install seat belt (8) when twisted
			*BA91.40-P-1006-01P
12	Install rear seat cushion		AR91.12-P-1020CW
13	Clip in clamp (4).
14	Fasten edge guard (2).

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Type 204.0
BA91.40-P-1006-01P	Bolt at rear belt end fitting	Nm	32

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
