Remove/install cover below instrument panel (right) - AR68.10-P-1520CW

MODEL 204, 207, 212, 218

Shown on model 204.0

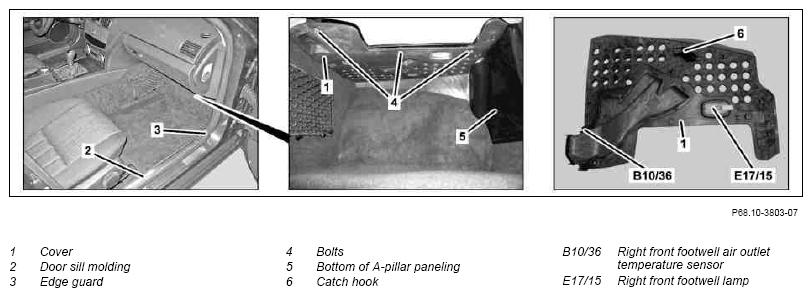

Fig 1: Identifying Instrument Panel Cover Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Adjust right front seat toward rear to end position
2	Remove door sill molding (2)	Model 204, 207
3	Loosen edge guard (3) in area of bottom A-pillar paneling (5).	Model 204, 207
4	Remove A-pillar paneling at bottom (5)	Model 204, 207
5	Fold floor covering to passenger side	Model 212, 218
6	Unscrew bolts (4) and lower cover (1)	Installation:  Guide catch hook (6) into corresponding lug on AC housing.
7	Disconnect electrical connector from air outlet temperature sensor on right front footwell vent (B10/36) and right front footwell lamp (E17/15)
8	Remove cover (1) out of the footwell
9	Install in the reverse order
