Remove/install paneling next to rear seat - AR68.30-P-1451CW

MODEL 204.0/ 2

			OV00.01-P-1901-07A
1.1	Remove rear seat backrest	Model 204.0 without code (287) Through-loading feature	AR91.12-P-1620CW
1.2	Remove left and right rear seat backrest side bolsters (1)	Model 204.0 with code (287) Through-loading feature	AR91.12-P-1710CW
		Model 204.2	AR91.12-P-1710CX

Shown on model 204 with code (287)

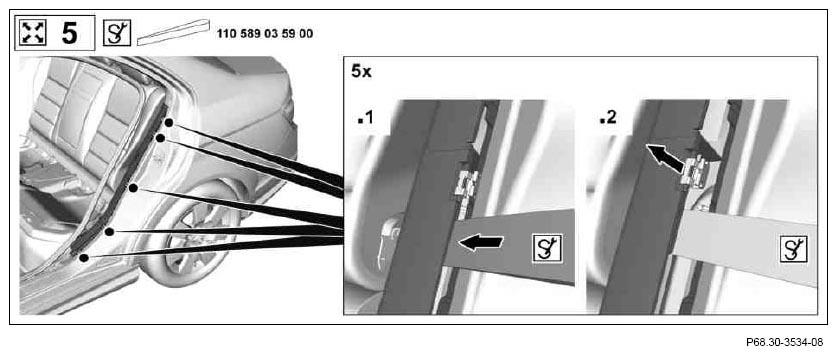

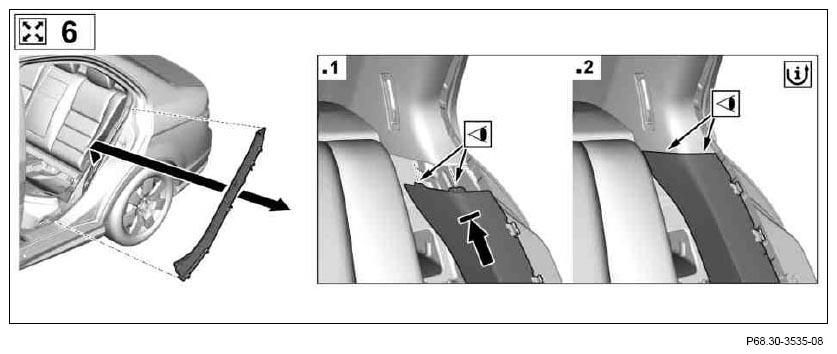

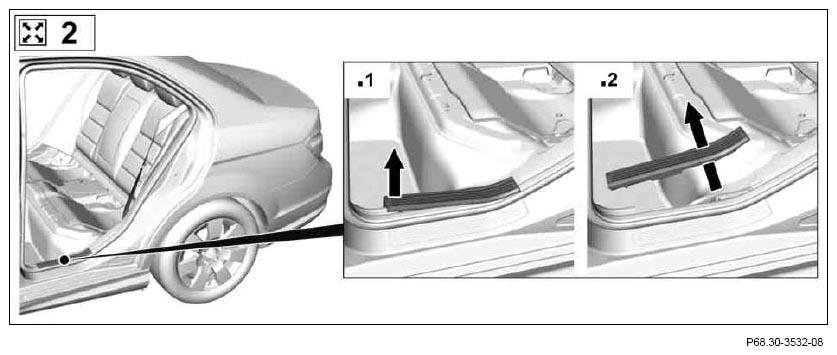

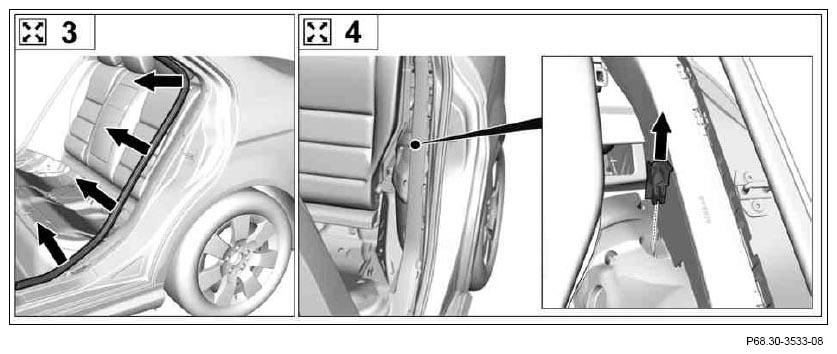

Fig 1: Identifying Paneling Next To Rear Seat Remove/Install Components (1 Of 4)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Paneling Next To Rear Seat Remove/Install Components (2 Of 4)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Paneling Next To Rear Seat Remove/Install Components (3 Of 4)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Paneling Next To Rear Seat Remove/Install Components (4 Of 4)

Courtesy of MERCEDES-BENZ USA

6 to 1
