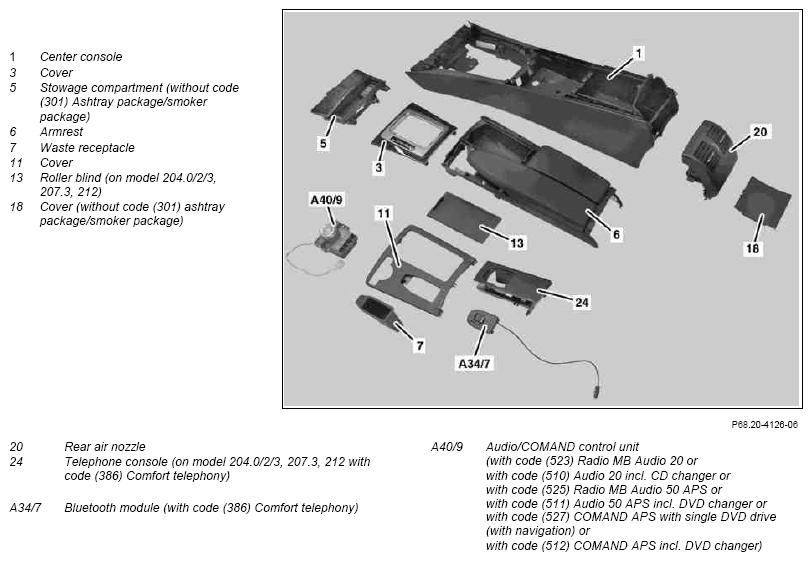

Disassemble/assemble center console - AR68.20-P-2150CW
MODEL 204, 207.3
MODEL 212 except CODE (279) Electronic gear selector
Shown on center console on model 204.0 with code (523) Radio MB Audio 20 and with code (386) Comfort telephony
Shown on model 204.0 with code (523) MB Audio 20 radio and code (386) Comfort telephony
Shown on model 204.0 with code (523) Radio MB Audio 20 and code (386) Comfort telephony
Shown on model 204.0 with code (523) MB Audio 20 radio and code (386) Comfort telephony

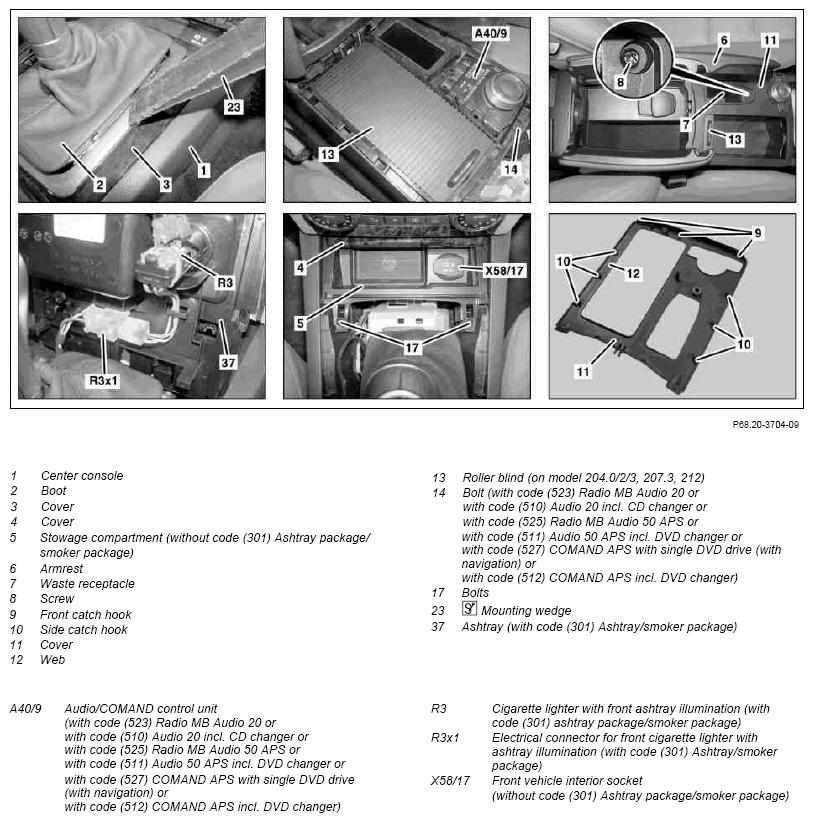

Fig 4: Identifying Center Console, Armrest, Mounting Wedge, Catch Hook, Bolts, Lugs, Flap, Bolt, Cover And Electrical Connector
Shown on telephone console (36) on model 204.9 with code (386) Comfort telephony
| Disassemble/assemble | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Switch off ignition and remove transmitter key (A8/1) or KEYLESS-GO start/stop button (S2/3) from electronic ignition lock control unit (N73) | KEYLESS-GO start/stop button only on vehicles with code (889) Keyless Go. | |
| 2 | Unclip boot (2) with assembly wedge (23) from cover (3) | Fig 6 | |
| 3 | Position selector lever or gearshift lever to neutral or position "N" | ||
| 4.1 | Open cover (4) on stowage box (5) | Vehicles without code (301) Ashtray package/smoker package | |
| 4.2 | Open cover (4) on ashtray (37). | Vehicles with code (301) Ashtray package/smoker package | |
| 5 | Unclip cover (3) upward in front area and remove | ||
| 6 | Open armrest (6) and take out waste receptacle (7) | ||
| 7 | Unscrew bolt (8) | ||
| 8 | First remove front catch hooks (9), then side catch hooks (10) and remove cover (11) from center console (1). | ||
| 9 | Pull roller blind (13) toward front out of armrest (6). | Model 204.0/2/3, 207.3, 212 | |
| 10 | Remove bolt (14) | Vehicles with code (523) MB Audio 20 radio or with code (510) Audio 20 with CD changer or with code (525) MB Audio 50 APS radio or with code (511) Audio 50 APS incl. DVD changer or with code (527) COMAND APS with single DVD drive (with navigation) or with code (512) COMAND APS incl. DVD changer | |
| 11 | Loosen center console (1) until electrical line (34) is accessible on the underside of center console (1) | Only when completely removing audio/COMAND operating unit (A40/9) on vehicles with code (523) MB audio 20 radio or with Code (510) Audio 20 including CD changer or with Code (525) MB audio 50 APS radio or with code (511) MB audio 50 APS incl. DVD changer or with Code (527) COMAND APS with single DVD drive (with navigation) or with Code (512) COMAND APS incl. DVD changer | |
| Model 204, 207 | AR68.20-P-2000CW | ||
| Model 212 | AR68.20-P-2000EW | ||

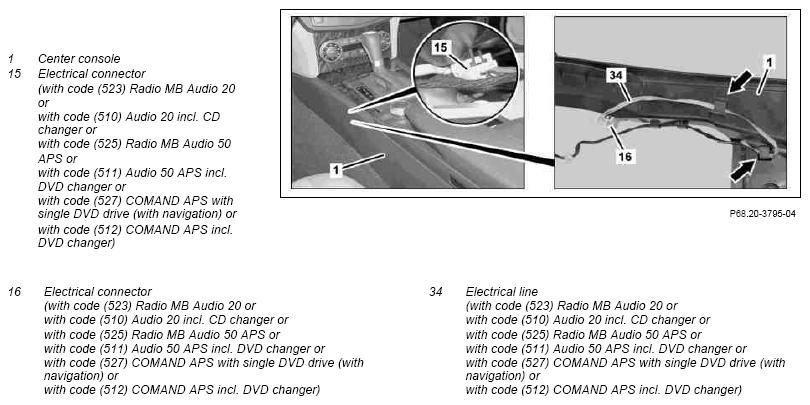

| 12 | Disconnect electrical connector (15) | Only when completely removing audio/COMAND operating unit (A40/9) on vehicles with code (523) MB audio 20 radio or with Code (510) Audio 20 including CD changer or with Code (525) MB audio 50 APS radio or with code (511) MB audio 50 APS incl. DVD changer or with Code (527) COMAND APS with single DVD drive (with navigation) or with Code (512) COMAND APS incl. DVD changer | |
| 13 | Unclip electrical connector (16) from center console (1), unhook electrical line (34) from guides (arrows) and remove audio/COMAND control unit (A40/9) | Only when completely removing audio/COMAND operating unit (A40/9) on vehicles with code (523) MB audio 20 radio or with Code (510) Audio 20 including CD changer or with Code (525) MB audio 50 APS radio or with code (511) MB audio 50 APS incl. DVD changer or with Code (527) COMAND APS with single DVD drive (with navigation) or with Code (512) COMAND APS incl. DVD changer | |
| 14.1 | Unscrew bolts (17) and remove stowage box (5) until electrical connector on front vehicle interior socket (X58/17) is accessible | Vehicles without code (301) Ashtray package/smoker package | |
| 14.2 | Unscrew bolts (17) and remove ashtray (37) until electrical connector on the cigarette lighter with front ashtray illumination (R3x1) is accessible | Vehicles with code (301) Ashtray package/smoker package | |
| 15.1 | Disconnect electrical connector from front vehicle interior socket (X58/17) and remove stowage box (5) | Vehicles without code (301) Ashtray package/smoker package | |
| 15.2 | Disconnect electrical connector on cigarette lighter with front ashtray illumination (R3x1) from cigarette lighter with front ashtray illumination (R3) and remove ashtray (37) | Vehicles with code (301) Ashtray package/smoker package | |
| 16 | Remove rear air vent (20) | Model 204, 212 | AR83.10-P-4800CW |
| Model 207.3 | AR83.10-P-4800EC | ||
| 17.1 | Remove rear ashtray | Model 204, 207.3 with code (301) Ashtray package/smoker package | AR68.20-P-2230CW |
| 17.2 | Remove cover (18) | Model 204, 207.3 without code (301) Ashtray package/smoker package On model 204, 207.3 without code (301) Ashtray package/smoker package, a cover (18) is installed instead of the rear ashtray. |
|
| 17.3 | Remove rear ashtray or stowage compartment | Model 212 |
AR68.20-P-2230EW |

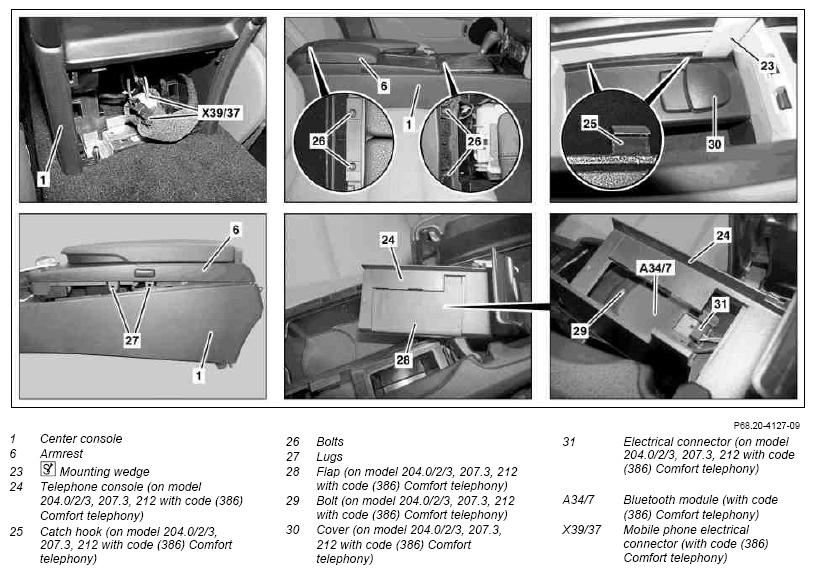

| 18 | Unclip telephone console (24) with assembly wedge (23) and lay down to side in center console (1) | Model 204.0/2/3, 207.3, 212 with code (386) Comfort telephony |
|
| Fig 6 | |||
| 19 | Remove bolts (26) | ||
| 20 | Unclip armrest (6) on lugs (27) on left and right side of center console (1) and move out toward rear. | On model 204.0/2 up to 28.2.2011, 207.3, 212 with code (386) Comfort telephony it is not necessary to remove the armrest (6) to completely remove the telephone mount (24) and the Bluetooth module (A34/7). |
|
| Fig 6 | |||
| 21 | Remove armrest (6) | On model 204.0/2 as of 1.3.2011, Model 204.3 | |
| 22 | Unscrew bolt at bottom of armrest (6) and remove Bluetooth module (A34/7) | On model 204.0/2 as of 1.3.2011, Model 204.3 | |
| 23 | Remove telephone console (24) from center console (1) until the flap (28) is accessible. | Model 204.0/2/3, 207.3, 212 with code (386) Comfort telephony | |
| 24 | Open flap (28) and Remove bolt (29) | Model 204.0/2/3, 207.3, 212 with code (386) Comfort telephony | |
| 25 | Unclip cover (30) from Bluetooth module (A34/7) | Model 204.0/2/3, 207.3, 212 with code (386) Comfort telephony | |
| 26.1 | Guide Bluetooth module (A34/7) out of telephone console (24) | Model 204.0/2/3, 207.3, 212 with code (386) Comfort telephony | |

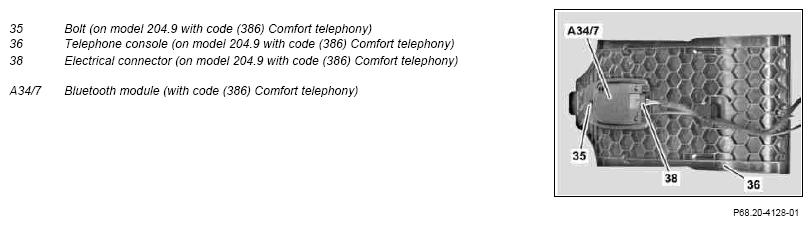

| 26.2 | Unscrew bolt (35) and remove Bluetooth module (A34/7) from telephone console (36) | Model 204.9 with code (386) Comfort telephony | |
| 27 | Disconnect mobile phone electrical connector (X39/37) | Vehicles with code (386) Comfort telephony | |
| 28.1 | Disconnect electrical connector (31) and remove Bluetooth module (A34/7) with associated electrical lines from center console (1) | Model 204.0/2/3, 207.3, 212 with code (386) Comfort telephony | |
| 28.2 | Disconnect electrical connector (38) and remove Bluetooth module (A34/7) with associated electrical lines from center console (1) | Model 204.9 with code (386) Comfort telephony | |
| 29 | Remove center console (1) from vehicle | ||
| 30 | Remove rear blower motor from center console (1) | Model 204, 212 with code (581) Comfort automatic air conditioning | |
| Model 212 | AR83.30-P-5565EW | ||
| 31 | Assemble in the reverse order |
