Remove/install rear ashtray - AR68.20-P-2230CW

MODEL 204, 207 with CODE (301) Ashtray package/smoker package

			OV00.01-P-1901-07A
1	Remove rear air nozzle	Do not separate the electrical connectors.
		Model 204	AR83.10-P-4800CW
		Model 207	AR83.10-P-4800EC

Shown on Model 204.0

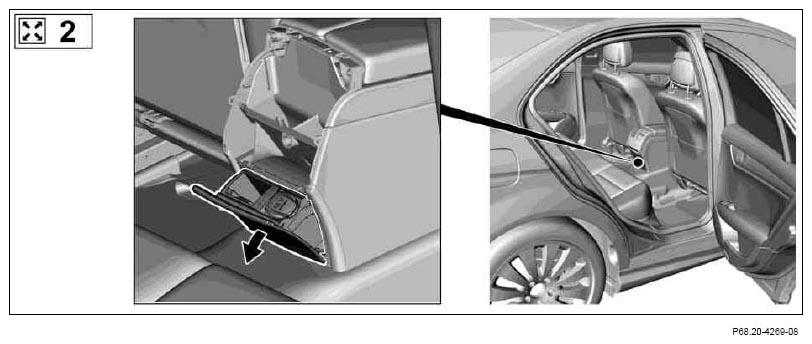

Fig 1: Identifying Rear Ashtray Removal/Install Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

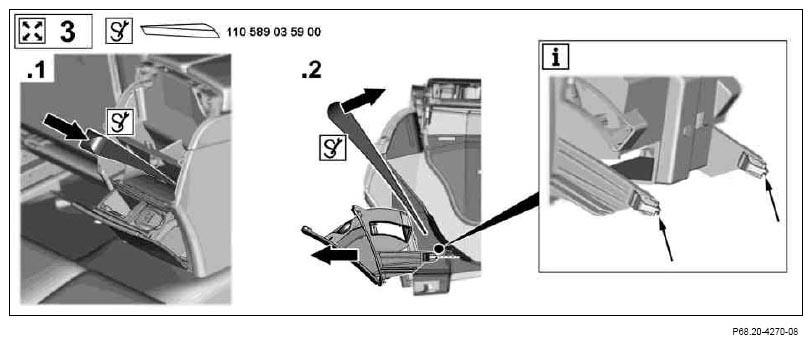

Fig 2: Identifying Rear Ashtray Removal/Install Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

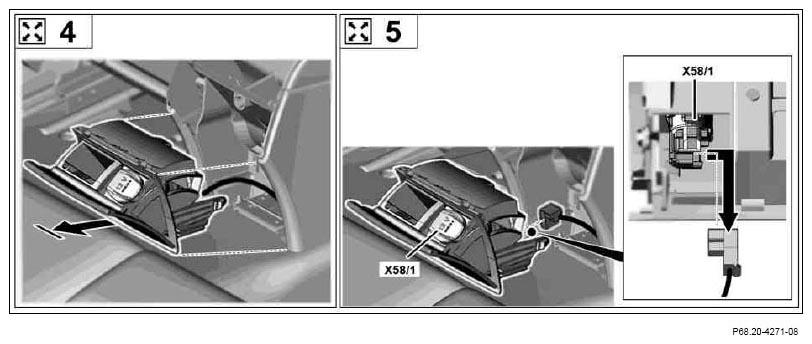

Fig 3: Identifying Rear Ashtray Removal/Install Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

5 to 1
