Remove/install radio - AR82.60-P-7502CW

MODEL 204 with CODE (523) MB Audio 20 radio

MODEL 204 with CODE (510) Audio 20 with CD changer

MODEL 204 with CODE (525) MB Audio 50 APS radio

MODEL 204 with CODE (511) Audio 50 APS with DVD changer

MODEL 204 with CODE (527) COMAND APS with single DVD drive (with navigation)

MODEL 204 with CODE (512) COMAND APS with DVD changer

Shown on model 204.0 up to 28.2.2011, with code (527) COMAND APS with single DVD drive (with navigation) and with code (873) Seat heater for left and right front seat

Illustrated on model 204.9

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Buffer basic data of radio (A2) or radio with auto pilot system (A2/56) or COMAND control unit (A40/3) in Star Diagnosis	When replacing radio (A2) or radio with auto pilot system (A2/56) or COMAND control unit (A40/3). Installation:  Transfer buffered basic data to new radio (A2) or new radio with auto pilot system (A2/56) or new COMAND control unit (A40/3).
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
2	Remove center air vent (1)	Model 204.0/2 up to model year 2012 /YoM 11	AR83.10-P-4503CW
		Model 204.0/2 as of model year 2012 /YoM 11 Model 204.3	AR83.10-P-4503CWA
		Model 204.9	AR83.10-P-4503CY
3	Ensure that radio (A2) or radio with auto pilot system (A2/56) or COMAND controller unit (A40/3) is switched off
4	Unclip and remove cover (9) with assembly wedge	Model 204.9
		Mounting wedge	Fig 3

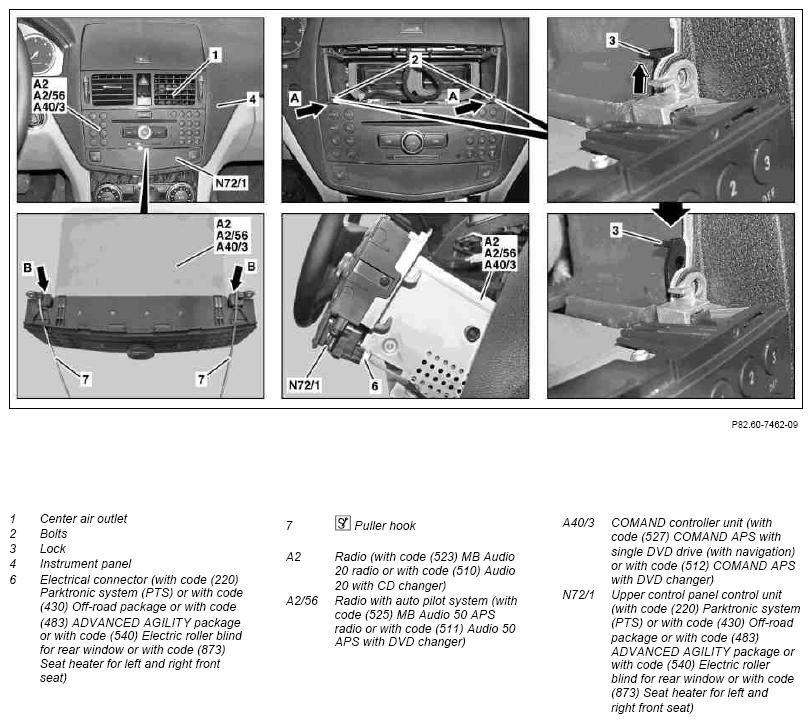

5.1	Remove bolts (2)	Model 204.0/2 as of 1.3.2011, model 204.3 Remove screws/bolts (2) up to end stop.
5.2	Manually slide both locks (3) located on instrument panel (4) all the way up in direction of arrow	Model 204.0/2 up to 28.2.2011 The locks (3) are located in the radio recess at the rear of the instrument panel (4).
6	Pull radio (A2) or radio with auto pilot system (A2/56) or COMAND controller unit (A40/3) out of instrument panel (4) with extraction hooks (7) until electrical connector (6) at upper control panel control unit (N72/1) is accessible	Model 204.0/2 up to 28.2.2011 With code (220) Parktronic system (PTS) or with code (430) Off-road package or with code (483) ADVANCED AGILITY package or with code (540) Power roller blind for rear window or with code (873) Seat heater for left and right front seat) Insert extraction hooks (7) through openings (arrow A), push towards rear and turn so that front of hooks points downwards. Extraction hooks (7) must make contact as shown at rear of radio (A2) or radio with auto pilot system (A2/56) or COMAND controller unit (A40/3) (arrows B).
		Pulling hook	Fig 4
7	Disconnect electrical connector (6) at upper control panel control unit (N72/1)	With code (220) Parktronic system (PTS) or with code (430) Off-road package or with code (483) ADVANCED AGILITY package or with code (540) Power roller blind for rear window or with code (873) Seat heater for left and right front seat)
8	Pull radio (A2) or radio with auto pilot system (A2/56) or COMAND controller unit (A40/3) out of instrument panel (4) with extraction hooks (7) until electrical connectors or fiber optic cable connector are accessible at back side	Model 204.0/2 up to 28.2.2011 Insert extraction hooks (7) through openings (arrow A), push towards rear and turn so that front of hooks points downwards. Extraction hooks (7) must make contact as shown at rear of radio (A2) or radio with auto pilot system (A2/56) or COMAND controller unit (A40/3) (arrows B).
		Pulling hook	Fig 4
9	Disconnect electrical connectors and fiber optic cable connector at back side of radio (A2) or radio with auto pilot system (A2/56) or COMAND controller unit (A40/3)
	Notes on avoiding damage to optical fibers during repair work	With Media Oriented System Transport (MOST)	AH82.60-P-0001-05AK

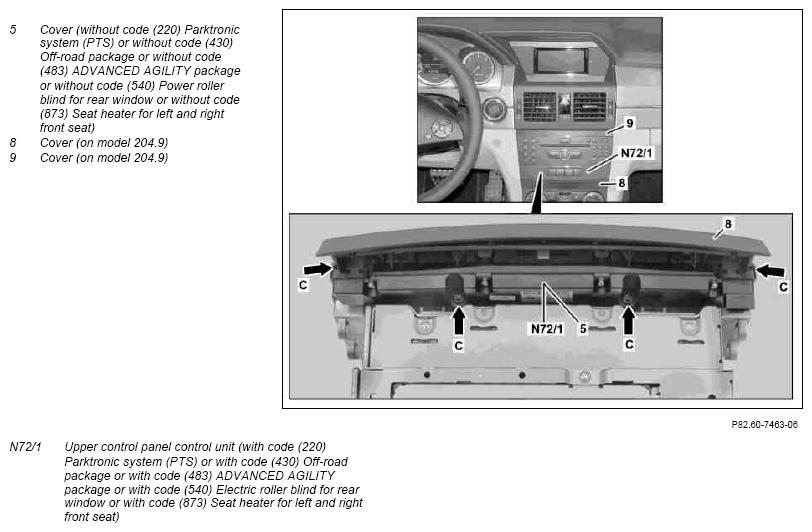

10	Remove screws/bolts (arrows C) and remove cover (5) or upper control panel control unit (N72/1)	Only when replacing radio (A2) or radio with auto pilot system (A2/56) or COMAND controller unit (A40/3). With model 204.9, ensure that cover (8) is not damaged when removing screws/bolts (arrows C), otherwise it must be replaced. Depending on the vehicle equipment, the cover (5) or the upper control panel control unit (N72/1) is installed
11	Install in the reverse order
