Remove/install rear seat backrest side bolster - AR91.12-P-1710CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0 with CODE (287) Through-loading feature

Shown on model 204.0

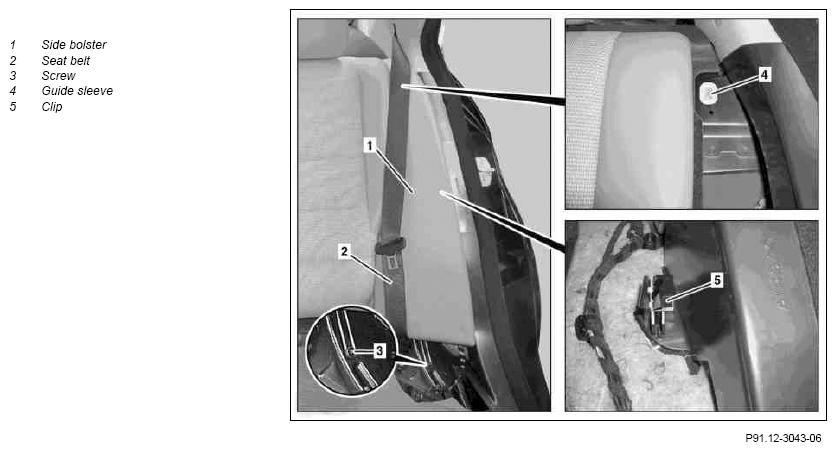

Fig 1: Identifying Rear Seat Backrest Side Bolster, Seat Belt, Screw, Guide Sleeve And Clip

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear seat cushion	Model 204	AR91.12-P-1020CW
2	Unscrew bolt (3)
3	Pull seat belt (2) to one side
4	Pull side bolster (1) at top out of guide sleeve (4) and remove from vehicle	Installation: Make sure that the wire clip of the side bolster (1) is engaged into the clip (5) on the wheel arch.
5	Install in the reverse order
