Remove/install rear seat cushion - AR91.12-P-1020CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0/2/9

Shown on model 204.0 without code (248) Rear seat with integrated child seat

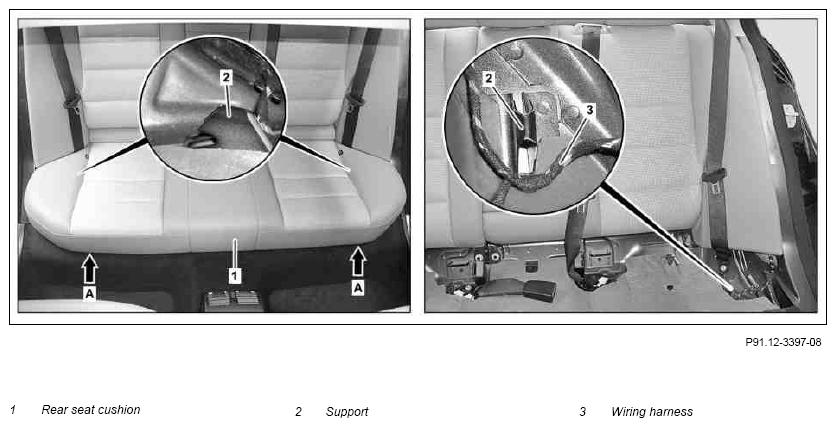

Fig 1: Identifying Rear Seat Cushion, Support And Wiring Harness

Courtesy of MERCEDES-BENZ USA

Shown on model 204.0 with code (248) Rear seat with integrated child seat

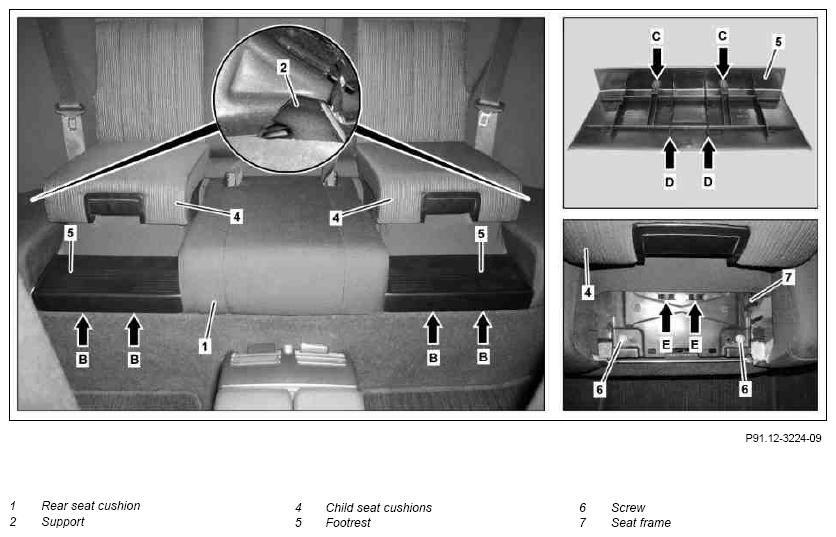

Fig 2: Identifying Rear Seat Cushion Components

Courtesy of MERCEDES-BENZ USA

Shown on model 204.3, left side of vehicle

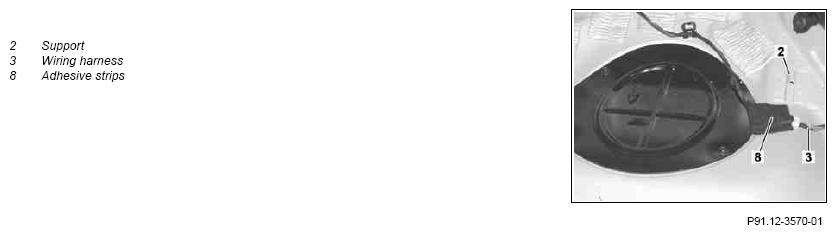

Fig 3: Identifying Support, Wiring Harness And Adhesive Strips

Courtesy of MERCEDES-BENZ USA

Shown on model 212

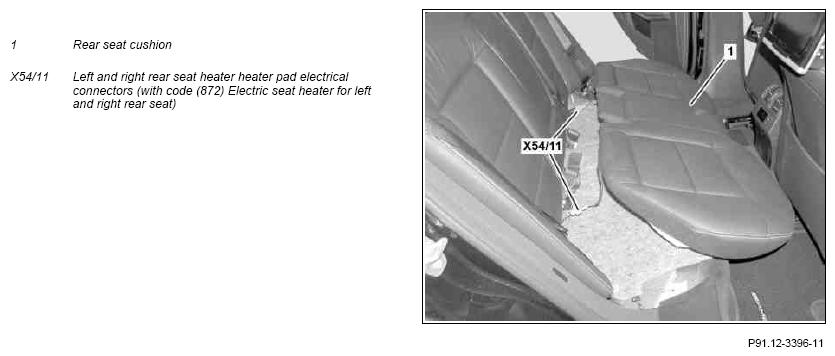

Fig 4: Identifying Rear Seat Cushion And Left/Right Rear Seat Heater Pad Electrical Connectors

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move both front seats forwards
2	Pull rear seat cushion (1) upwards out of the guide sleeves (arrows A)	For vehicles without code (248) Rear seat with integrated child seat
3	Extend child seat cushions (4)	For vehicles with code (248) Rear seat with integrated child seat
4	Remove left and right footrests (5)	For vehicles with code (248) Rear seat with integrated child seat At the marks (arrows B) on the footrests (5) insert a suitable screwdriver, alternately push back the catch hooks (arrows C), then remove the footrests (5) horizontally from the seat frame (7). Installation: Insert guides (arrows D) of footrests (5) into the cutouts (arrows E) of the seat frame (7).
5	Remove bolts (6) on left and right seat frame (7) of rear seat cushion (1)	For vehicles with code (248) Rear seat with integrated child seat	*BA91.12-P-1010-03I
6	Push rear seat cushion (1) far enough back to enable the retaining brackets on the bottom of the rear seat cushion (1) to be extended from the mounts (2)	Installation: Check for correct seating of retaining brackets in mounts (2).
7	Remove rear seat cushion (1)	Carefully remove rear seat cushion (1) from vehicle. Otherwise components in vehicle interior or at rear doors will be damaged. Installation: Note routing and fastening of electrical wiring harness (3) in front of mounts (2). Otherwise the electrical wiring harness (3) will be damaged. Installation: Pay attention to position of center seat belt buckle.
8	Install in the reverse order

REAR SEATS

Number	Designation		Model 204
BA91.12-P-1010-03I	Bolt, rear seat cushion to body	Nm	8
