Remove/install trim at C-pillar - AR68.30-P-4490CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0
| Removing | |||

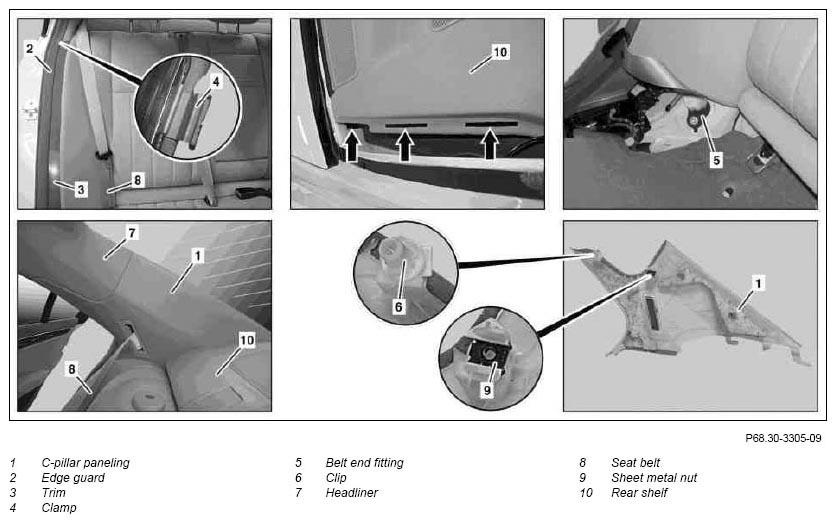

| 1 | Remove edge guard (2) in area of C-pillar paneling (1) and upper area of paneling (3). | ||
| 2 | Unclip clamp (4). | Figure | |
| 3 | Remove rear seat cushion | AR91.12-P-1020CW | |
| 4 | Remove belt end fitting (5) | ||
| 5 | Unclip C-pillar paneling (1) from clip (6) and pull toward front; slightly pivot in direction of center of vehicle and remove toward front from C-pillar. | ||
| Figure | |||
| 6 | Pull seat belt (8) through passage out of C-pillar paneling (1). | ||
| Install | |||
| 7 | Install sheet metal nut (9), which stuck in C-pillar mount during removal, in C-pillar paneling (1). | ||
| 8 | Pull seat belt (8) through passage in C-pillar paneling (1) | ||
| 9 | Position C-pillar paneling (1) in openings (arrows) in rear shelf (10) and body. | ||
| 10 | Clip C-pillar paneling (1) to C-pillar. | ||
| 11 | Install belt end fitting (5) | ||
| *BA91.40-P-1006-01P | |||
| 12 | Install rear seat cushion | AR91.12-P-1020CW | |
| 13 | Clip in clamp (4). | ||
| 14 | Fasten edge guard (2). |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Type 204.0 | |
|---|---|---|---|
| BA91.40-P-1006-01P | Bolt at rear belt end fitting | Nm | 32 |
