Remove/install sliding rail for water drain rail on sliding roof - AR77.20-P-1998CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2, 212 with CODE (414) Power glass tilting/sliding roof
MODEL 212 with CODE (414) Power glass tilting/sliding roof up to model year 2011

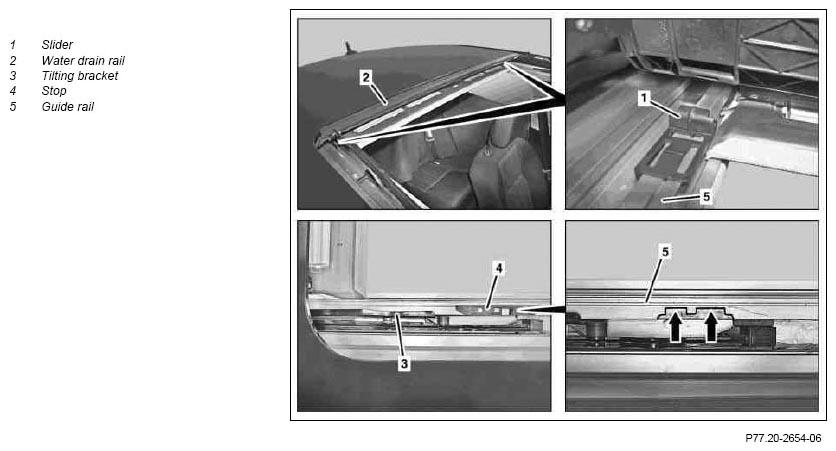

Shown on right slider on model 204
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Remove water drain rail (2). | AR77.20-P-1997CW | |
| 2 | Move tilting bracket (3) in "OPEN" direction by actuating tilting/sliding roof drive unit until stop (4) can be removed from guide rail (5). | ||
| 3 | Unclip stop (4) from guide rail (5) toward outside of vehicle. | ||
| 4 | Push sliding rail (1) toward front and remove through cutouts (arrows) from guide rail (5). | ||
| 5 | Install in the reverse order |
