Remove/install panoramic sliding roof motor - AR77.21-P-6995CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0 /2 /9 with CODE (413) Panoramic sliding roof panoramic sliding roof roller sun blind drive unit, panoramic sliding roof control unit
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Detach headliner and lay down on seats | Model 204.0 | AR68.30-P-4300CW |
| Model 204.2 | AR68.30-P-4300CX | ||
| Model 204.9 | AR68.30-P-4300CY | ||

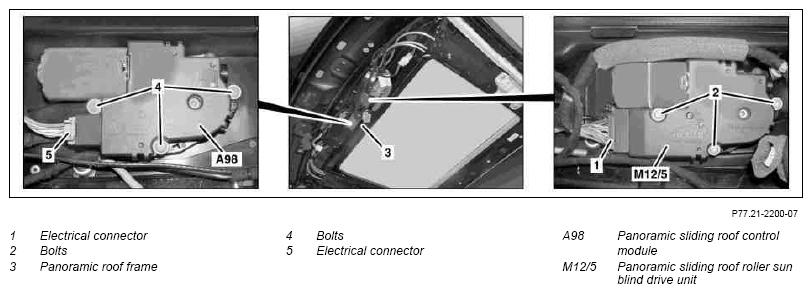

| 2.1 | Remove bolts (2) and remove panoramic sliding roof roller sun blind drive unit (M12/5) from panoramic roof frame (3) until the lock on the electrical connector (1) is accessible. Then disconnect electrical connector (1) and remove panoramic sliding roof roller sun blind drive unit (M12/5) | When removing panoramic sliding roof roller sun blind drive unit (M12/5) | |
| 2.2 | Remove bolts (4), disconnect electrical connector (5) and remove panoramic sliding roof control unit (A98) | When removing panoramic sliding roof control unit (A98). | |
| 3 | Install in the reverse order | ||
| 4.1 | Synchronize panoramic roof and perform teach-in run for panoramic roof | After installing panoramic sliding roof control unit (A98). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 4.2 | Synchronize panoramic sliding roof roller sun blind drive unit (M12/5) and perform teach-in run for anti-pinch protection of roller sun blinds | After installing panoramic sliding roof roller sun blind drive unit (M12/5). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
