Remove/install panoramic front glass roof - AR77.21-P-0500CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2/9 with CODE (413) Panoramic sliding roof

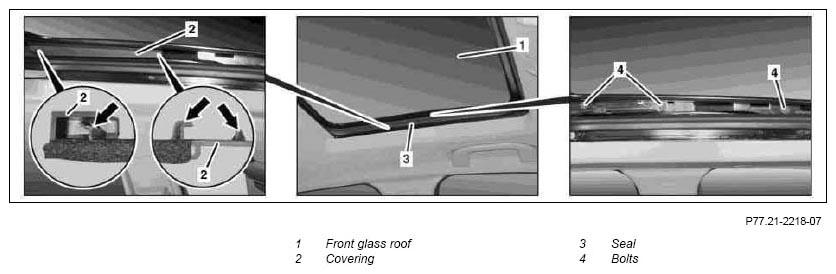

Shown on left side of panoramic roof
| Removing | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Move front glass roof (1) to tilt position | ||
| 2 | Unclip left and right covering (2) from catch hook (arrows) and remove. | ||
| 3 | Loosen seal (3) in area of bolts (4) on left and right side of front glass roof (1). | ||
| 4 | Remove bolts (4) | ||
| 5 | Remove front glass roof (1). | ||
| Install | |||
| 6 | Insert front glass roof (1) and screw in bolts (4). | ||
| 7 | Adjust front glass roof (1) and complete vehicle | AR77.21-P-0501CW |
