Remove/install drive cable for panoramic roof roller sun blind - AR77.21-P-0230CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0/2/9 with CODE (413) Panoramic sliding roof

Shown on model 204.0 on right side of panoramic roof

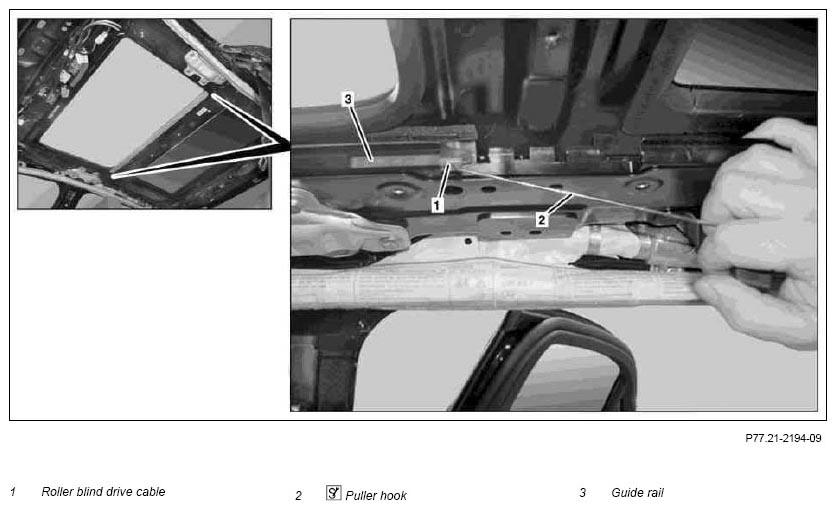

Fig 1: Removing Panoramic Roof Roller Sun Blind Drive Cable
G07069953Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove left and right slider on front roller sun blind   AR77.21-P-0222CW
2 Hook extraction hook (2) into roller drive cable driver (1) and pull roller blind drive cable (1) out of guide rail (3) IMPORTANT Always replace roller blind drive cables (1) in pairs.
SPECIAL TOOL Figure
3 Install in the reverse order
Fig 2: Identifying Pulling Hook (140 589 02 33 00)
G07069954Courtesy of MERCEDES-BENZ USA
