Remove, install slide shoes for roller sun blind on panoramic roof - AR77.21-P-0222CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0/2/9 with CODE (413) Panoramic sliding roof

Shown on model 204.0 on right side of panoramic roof

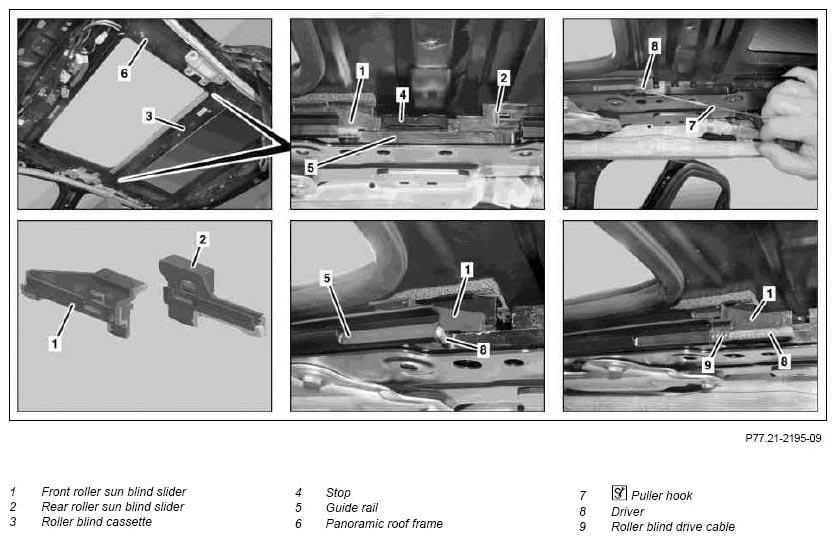

Fig 1: Identifying Panoramic Roof Roller Sun Blind Slide Shoes Components
G07069955Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove roller blind cassette (3)   AR77.21-P-0205CW
2 Electrically or mechanically move front roller sun blind slider (1) and rear roller sun blind slider (2) to "Roller sun blind open" position
3 Unclip left and right end stops (4) from guide rails (5) at an angle toward inside and upward NOTES Carefully unclip end stops (4); end stops (4) can break.
4 Remove left and right slider on rear roller sun blind (2) from guide rails (5) toward front IMPORTANT If one front roller sun blind slider (1) or one rear roller sun blind slider (2) is defective, it is necessary to replace both front roller sun blind sliders (1) or both rear roller sun blind slider (2).
5 Remove panoramic sliding roof roller sun blind drive from panoramic roof (6) and allow to hang down with electrical lines connected NOTESInstallation:  Check position of drivers (8) in guide rails (5). Ensure that the roller blind drive cables (9) cannot shift, thereby changing the position of the driver (8). Otherwise the roller sun blinds are not actuated equally and can be damaged. AR77.21-P-6995CW
6 Pull left and right roller blind drive cable (9) toward rear with extraction hook (7) until left and right front roller sun blind slider (1) can be removed from guide rails (5). IMPORTANTInstallation:  Position left and right roller blind drive cables (9) in corresponding guide rail (5), so that the left and right driver (8) is flush with the end of the guide rail (5) in question. This ensures that the roller sun blinds are actuated equally later.
SPECIAL TOOL Figure
7 Remove left and right front roller sun blind sliders (1) from guide rails (5) toward rear
8 Install in the reverse order
Fig 2: Identifying Pulling Hook (140 589 02 33 00)
G07069956Courtesy of MERCEDES-BENZ USA
