Remove, install mechanical front glass roof for panoramic sliding roof - AR77.21-P-0510CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204 with CODE (413) Panoramic sliding roof
Shown on model 204.0, on right side of panoramic roof
Shown on model 204.0, on right side of panoramic roof
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| It is necessary to replace all parts present in the repair kit, even if only one part of the panoramic roof mechanical system is defective. Otherwise proper function of the panoramic roof is not permanently ensured | |||

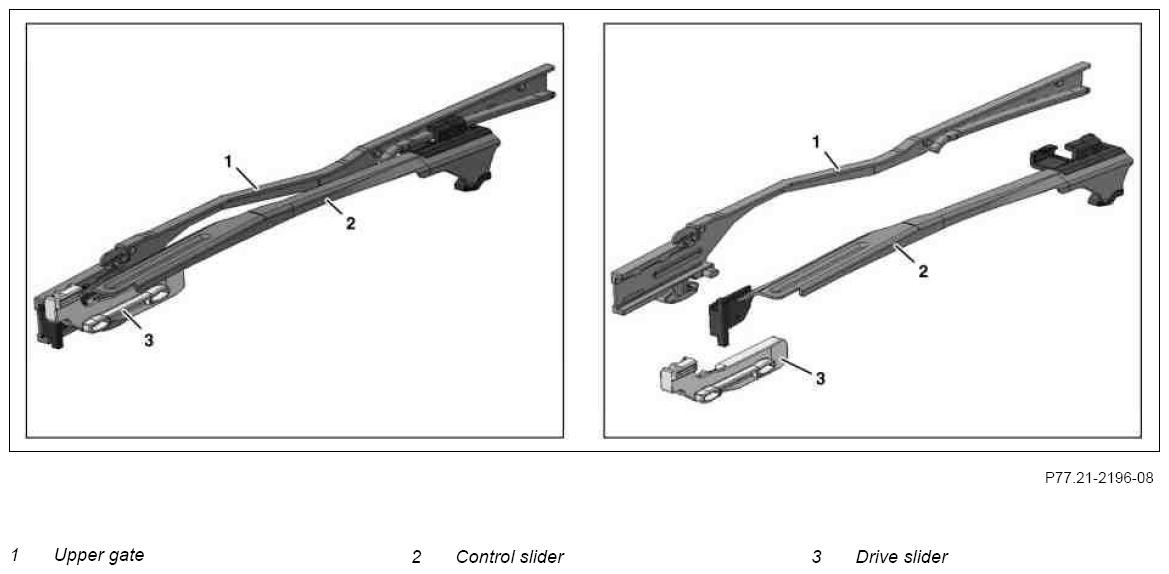

| 1 | Remove front glass roof | Model 204.0/2/9 | AR77.21-P-0500CW |
| Model 204.3 | AR77.21-P-0500EW | ||

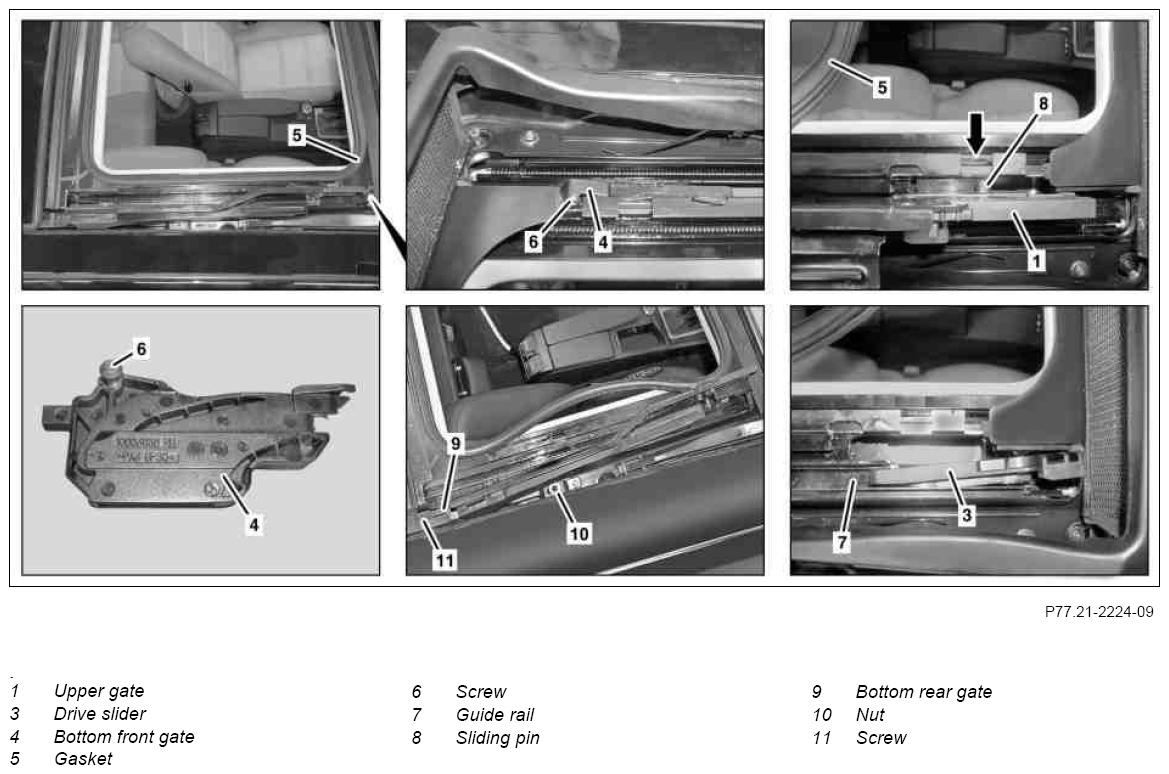

| 2 | Move panoramic sliding roof switch (N70/3s1) in "OPEN" direction and move panoramic roof mechanical system until left and right bottom front gate (4) are accessible. | ||
| 3 | Loosen seal (5) in area of left and right lower front gate (4). | ||
| 4 | Loosen bolt (6) approx. 4 turns and remove left and right front lower gate (4) | ||
| 5 | Actuate panoramic sliding roof switch (N70/3s1) in "CLOSE" direction and move panoramic roof mechanical system until the sliding pins (8) on the left and right top gate (1) make contact to the cutout (arrow) on the corresponding guide rail (7) | ||
| 6 | Remove left and right upper gate (1) together with control slider (2) toward front and remove upward from guide rails (7) | ||
| 7 | Unscrew nut (10) on left and right side of panoramic roof and remove washer. | ||
| 8 | Unscrew bolt (11) on left and right side of panoramic roof | ||
| 9 | Remove left and right upper gate (1), control slider (2) and left and right lower rear gate (9) | ||
| 10 | Move panoramic sliding roof switch in "CLOSE" direction and move panoramic roof mechanical system until left and right bottom drive slider (3) are completely moved toward front. | ||
| 11 | Position left and right drive slider (3) in front area in guide rails (7) at an angle | ||
| 12 | Actuate panoramic roof sliding switch in the "CLOSE" direction and move the panoramic roof mechanical system until the left and right drive slider (3) can be removed. | ||
| 13 | Remove drive slider (3) form guide rails (7) | ||
| 14 | Install in the reverse order |
