Check poly-V-belt in visible area for wear (ENGINE 272) - AP13.22-P-1352VA
ENGINE 272.942 in MODEL 171.454
ENGINE 272.963 in MODEL 171.456

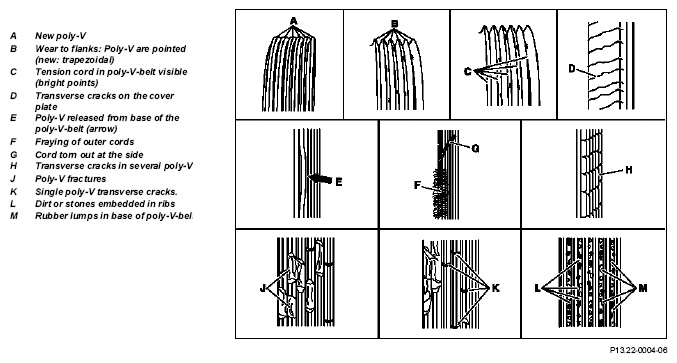

Damage diagram
| Remove/Install | |||
|---|---|---|---|
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | - | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | - | |
| 1 | Open engine hood | ||
| Opening engine hood, moving to upright position and closing | AR88.40-P-1000V | ||
| Checking | |||

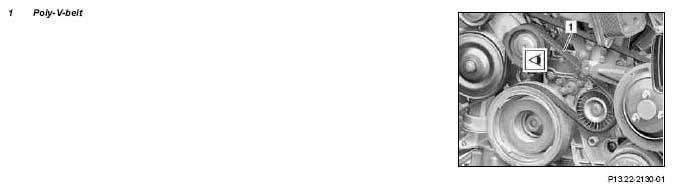

| 2 | Check condition of poly-V-belt (1) at the visible points and compare against damage profiles | ||
| Remove/install poly V-belt | AR13.22-P-1202VA | ||
| 3 | Raise vehicle with lifting platform | ||
| Lift/jack up vehicle | AR00.60-P-1000V | ||
| 4 | Remove bottom engine compartment paneling | ||
| Remove and install bottom engine compartment paneling | AR61.20-P-1105V | ||
| Checking | |||
| 5 | Check the poly-V-belt (1) at the points visible when the vehicle is raised for signs of wear and compare against the damage profiles | ||
| Remove/install poly V-belt | AR13.22-P-1202VA | ||
| 6 | Install in the reverse order |
