Remove/install bottom engine compartment paneling - AR61.20-P-1105V

MODEL 171

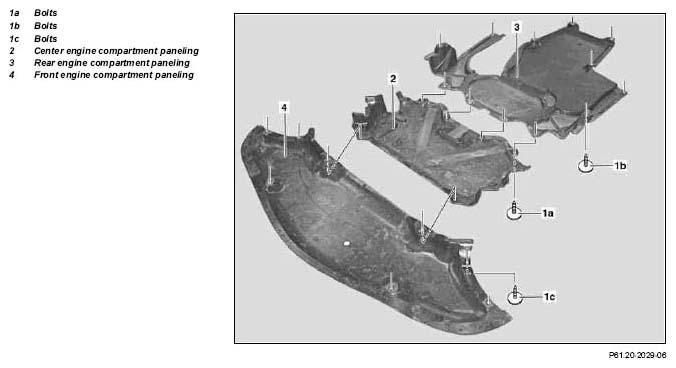

Fig 1: Identifying Bottom Engine Compartment Paneling Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

11.2.04

Tool newly included

Steps 2, 4, 6

	Remove/Install
	Risk of death  cased by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer.	-
1	Raise vehicle with lifting platform		AR00.60-P-1000V
2	Unscrew bolts (1a) of center engine compartment paneling (2)	Battery-powered drill/screwdriver	*WH58.30-Z-1007-20A
3	Take off center engine compartment paneling (2)	Can be removed separately.
4.1	Unscrew bolts (1b) of rear engine compartment paneling (3)	Except model 171.473.
		Battery-powered drill/screwdriver	*WH58.30-Z-1007-20A
5.1	Take off rear engine compartment paneling (3)	Except model 171.473. Can be removed separately.
6	Unscrew bolts (1c) of front engine compartment paneling (4)	Battery-powered drill/screwdriver	*WH58.30-Z-1007-20A
7	Take off front engine compartment paneling (4)	Can be removed separately.
8	Install in the reverse order

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1007-20A	Cordless drill/driver
