Remove/install outside temperature indicator sensor - AR54.30-P-6341V

MODEL 171.4

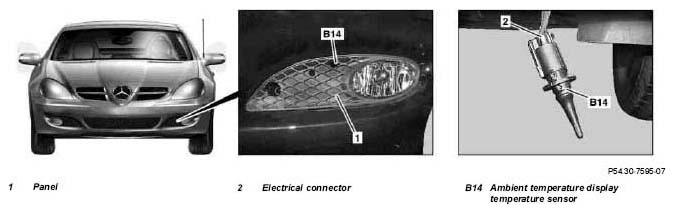

Fig 1: Identifying Outside Temperature Indicator Sensor Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Remove bottom engine compartment paneling	Only remove the front engine compartment paneling at the bottom.	AR61.20-P-1105V
2	Press outside temperature display temperature sensor (B14) backwards out of the surround (1)
3	Disconnect electric connector (2)
4	Install in the reverse order
