Remove/install outer door handle guide on front door - AR72.10-P-2410V
MODEL 171.4

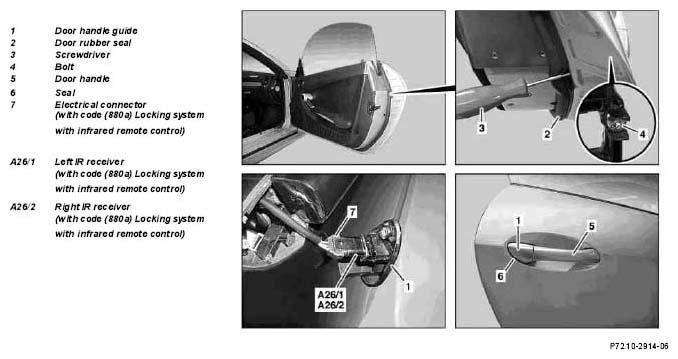

Shown on right front door
| Remove/Install | |||
|---|---|---|---|
| 1 | Open left or right front door | ||
| 2 | Press door rubber seal (2) to side until access cover below is accessible | ||
| 3 | Guide suitable screwdriver (3) into access cover and loosen inner bolt (4) | *BA72.10-P-1005-01AB | |
| 4 | Lift door handle (5) and remove door handle guide (1) | ||
| 5.1 | Disconnect electrical connector (7) from left IR receiver (A26/1) or right IR receiver (A26/2) | Only on vehicles with code (880a) locking system with infrared remote control | |
| 6.1 | Remove right IR receiver (A26/2) from door handle guide (1) | Only when replacing door handle guide (1) on passenger door on vehicles with code (880a) locking system with infrared remote control. | AR80.30-P-4305VA |
| 7.1 | Remove front door lock cylinder | Only when replacing door handle guide (1) on driver's door | AR72.10-P-4015V |
| 8 | Install in the reverse order |
FRONT DOOR
| Number | Designation | Model 171 | |
|---|---|---|---|
| BA72.10-P-1005-01AB | Bolt, lock cylinder guide to front door | Nm | 3 |
