Remove/install mirror triangle cover on front door - AR72.10-P-3001V

MODEL 171.4

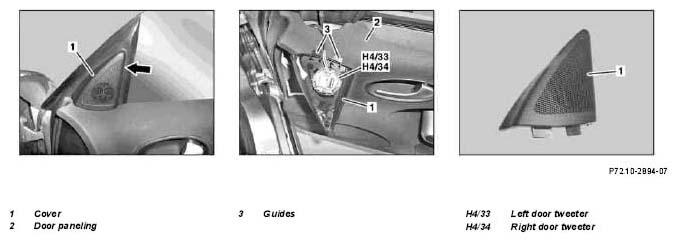

Fig 1: Identifying Mirror Triangle Cover Components On Front Door

Courtesy of MERCEDES-BENZ USA

Shown on right front door

	Remove/Install
1	Unclip cover (1) on left or right front door with mounting wedge	Installation:  First insert guides (3) into door paneling (2)	Figure
2	Unclip door tweeter (H4/33) or right door tweeter (H4/34) from cover (1)	Note correct installation positions.
3	Remove cover (1)
4	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
