Remove/install loudspeakers in front doors - AR82.62-P-7845V

MODELS 171.4

Shown on right front door

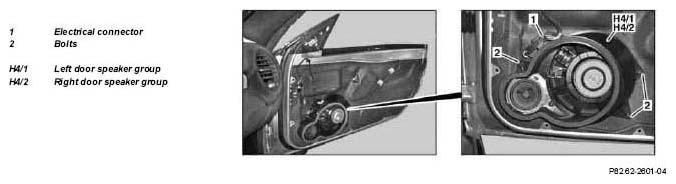

Fig 1: Identifying Loudspeakers In Front Doors Components - Shown On Right Front Door

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Remove door liner from left or right front door		AR72.10-P-1000V
2	Disconnect electrical connector (1).
3	Unscrew screws (2) and remove left door speaker group (H4/1) or right door speaker group (H4/2) from front door
4	Install in the reverse order
