Remove/install speaker cover - AR72.10-P-1032V

MODEL 171.4

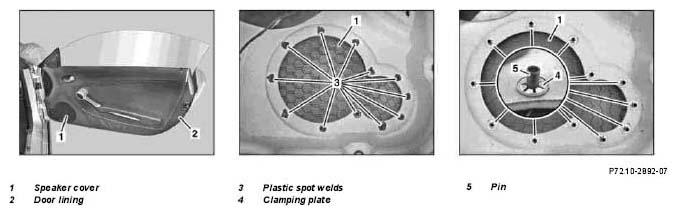

Fig 1: Identifying Speaker Cover Components

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove door liner (1) from left and right front door	Put down door liner (2) on a suitable base to avoid damage.	AR72.10-P-1000V
2	Separate plastic bonded points (3) on speaker cover (1)	Do not operate at excessive speed because the plastic becomes too hot, melts and galls the spherical cutter.
			*WH58.30-Z-1002-01A
3	Remove speaker cover (1) and remove plastic residues from door liner (2)
	Install
4	Insert speaker cover (1)
5	Press clamping plates (4) over pins on speaker cover (1)	Use 10 mm socket wrench. Clamping plates (4) should make firm contact to door liner (2).
6	Shorten pins (5) of speaker cover (1) to a length of approx. 2 mm with suitable pliers.
7	Install door liner (2) on left and right front door		AR72.10-P-1000V

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1002-01A	Ball cutter, dia. 12 mm
