Remove/install power window in front door - AR72.10-P-1800V

MODEL 171.4

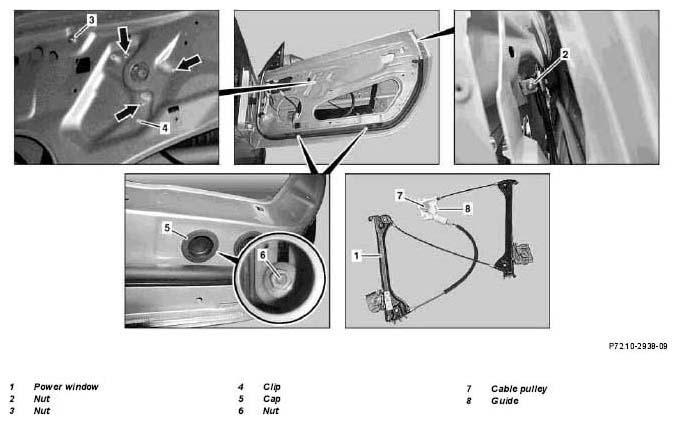

Fig 1: Identifying Power Window In Front Door Components

Courtesy of MERCEDES-BENZ USA

Shown on right front door

	Remove/Install
1	Remove front door crank window		AR72.10-P-1900V
2	Remove power window motor in front door		AR72.29-P-1860V
3	Slacken nut (2)		*BA72.10-P-1008-01AB
4	Unscrew nuts (3)		*BA72.10-P-1008-01AB
5	Unclip control cable from clip (4) on power window (1) from inside
6	Remove front and rear cap (5) and unscrew nuts (6) below		*BA72.10-P-1008-01AB
7	Press cable pulley (7) together with guide (8) on clips (arrows) through inner door panel toward inside
8	Remove power window (1) through the access cover in the inner door panel	Note correct installation positions.
9	Install in the reverse order

FRONT DOOR

Number	Designation		Model 171
BA72.10-P-1008-01AB	Nut, power window to inner door panel	Nm	9
